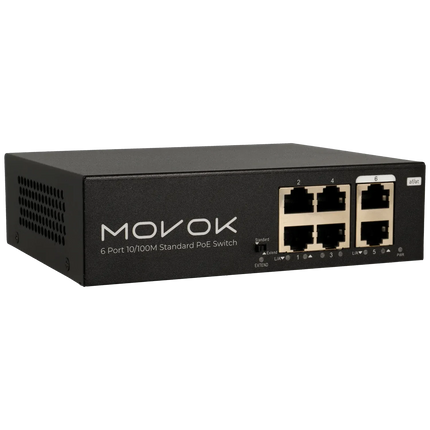

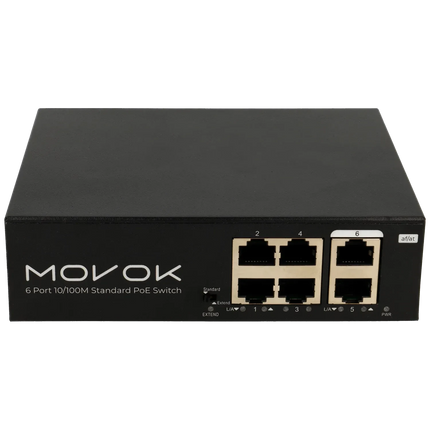

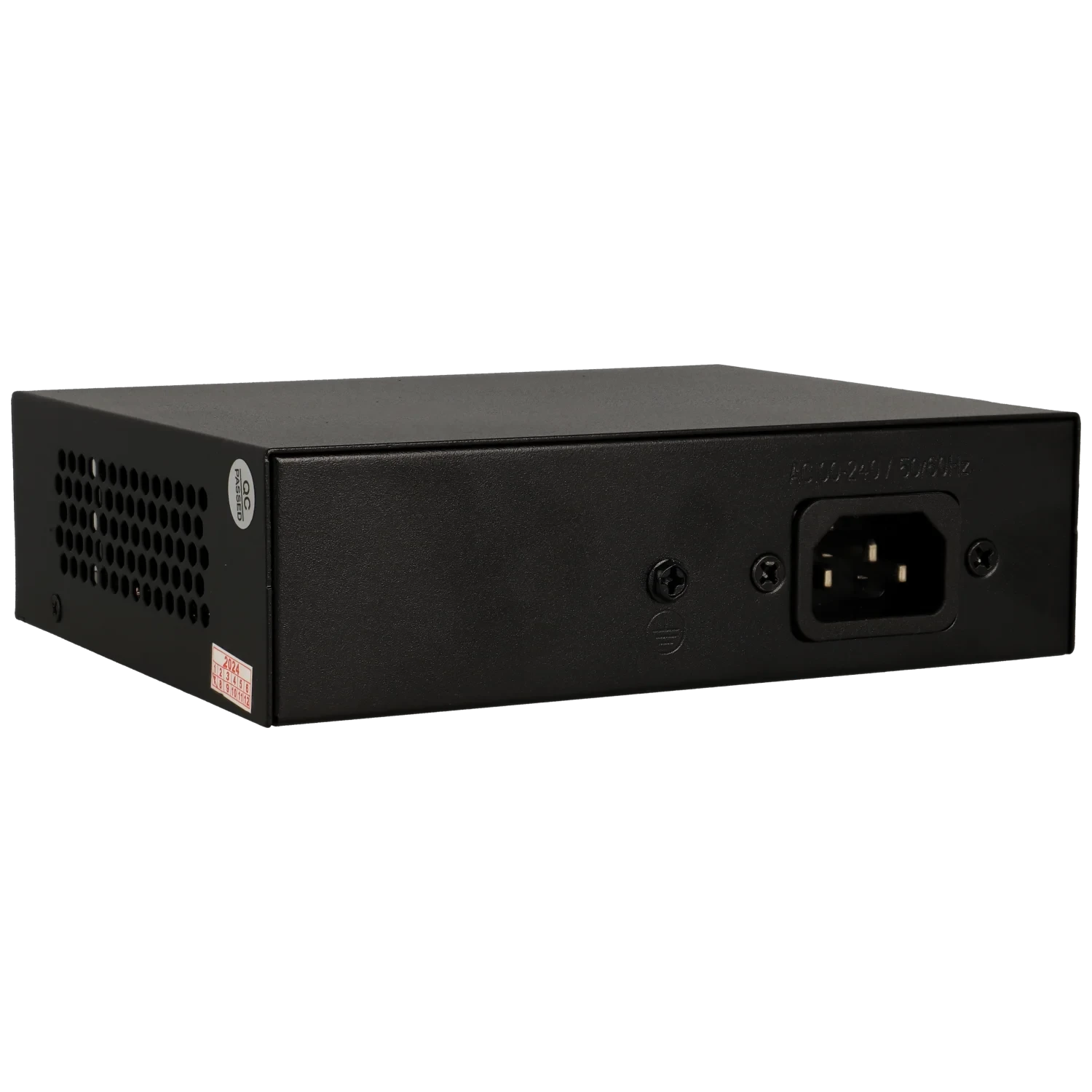

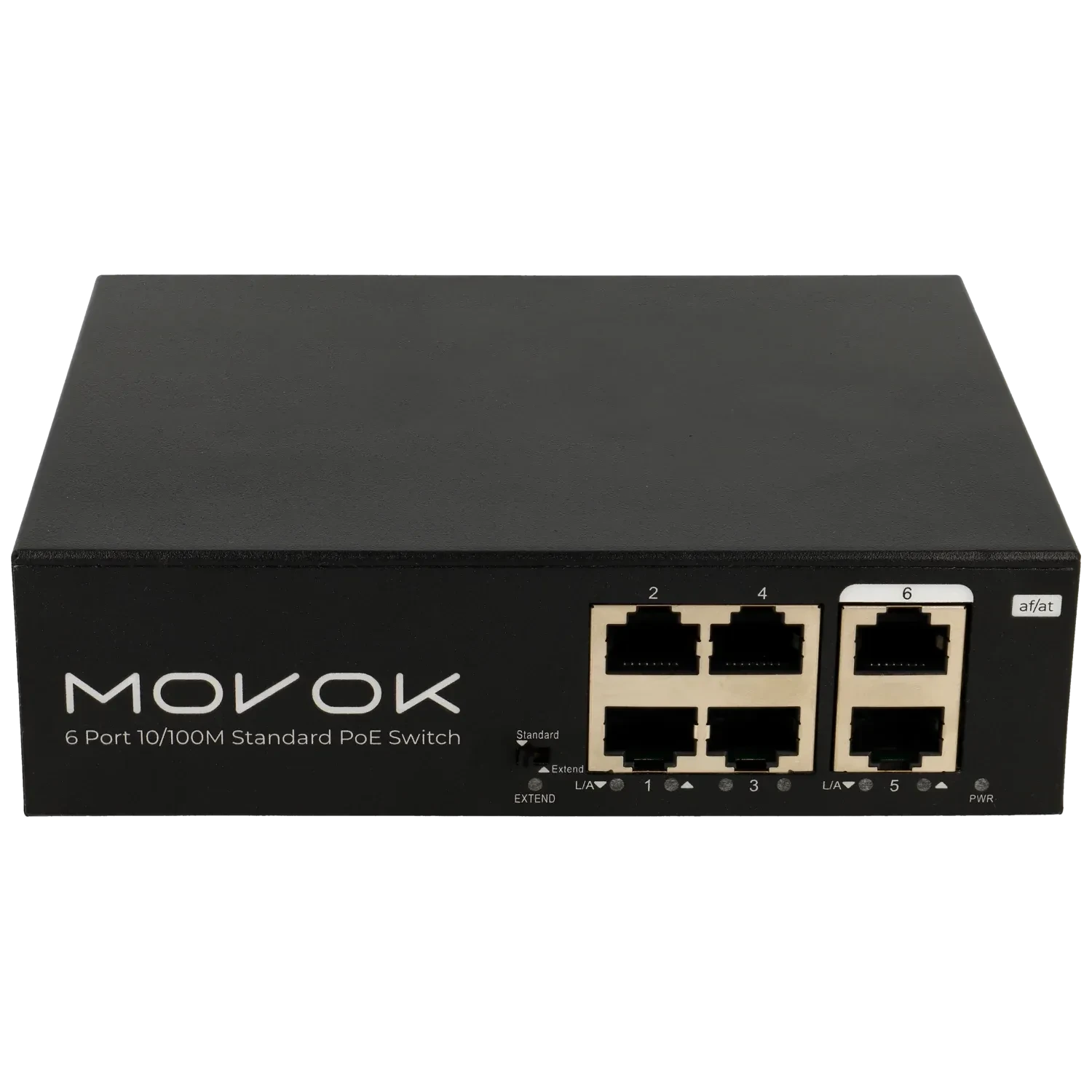

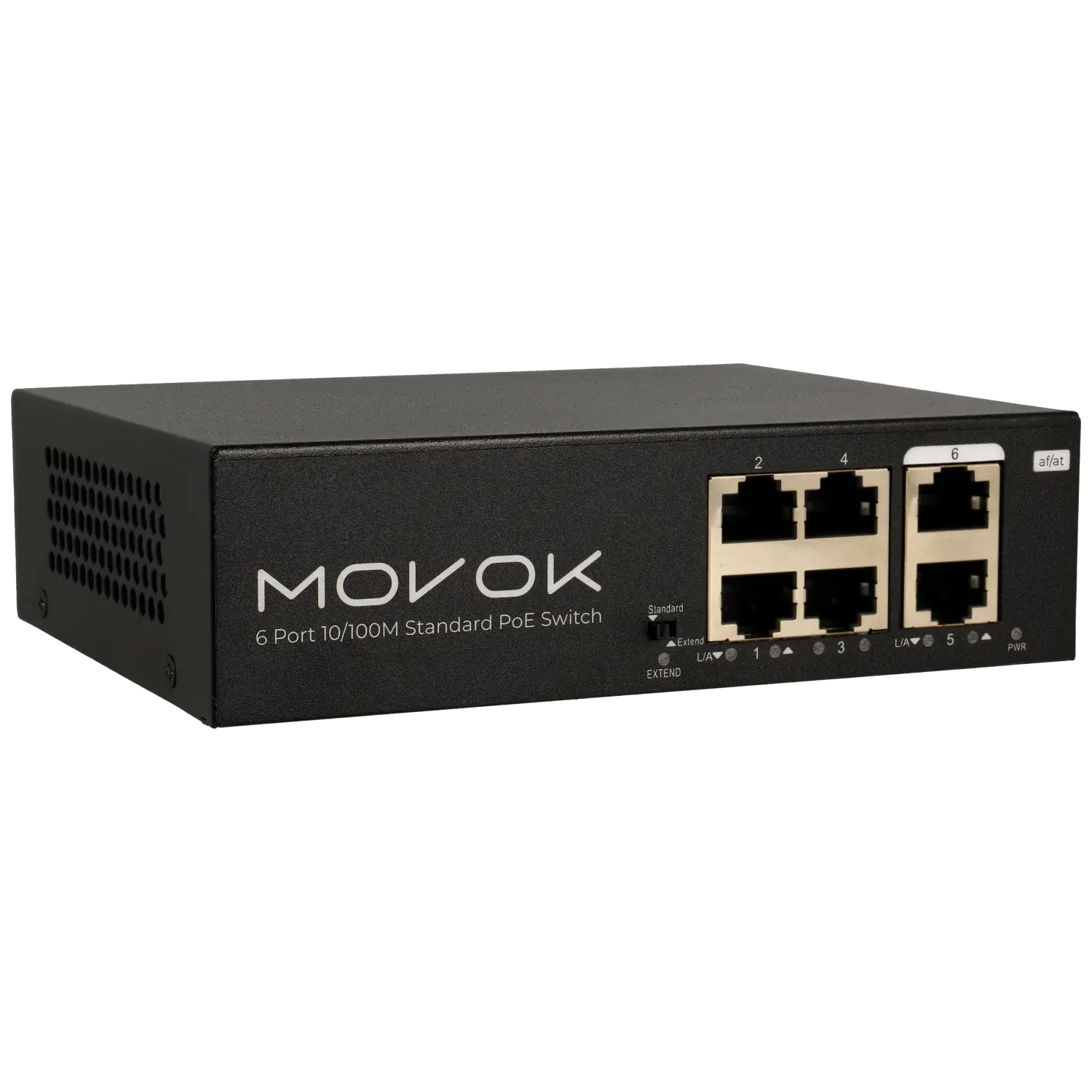

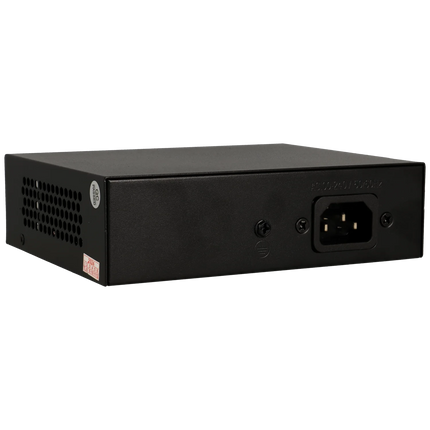

6 Port PoE Switch, 100Mb, 250m PoE

The VK-SWITCH-0604POE-65 is a compact, rugged unmanaged switch with Power over Ethernet functionality. It offers 6 RJ-45 ports - 4 of which have PoE/PoE+ - and 2 100Mb Uplink ports, ideal for small offices, CCTV installations and IoT applications.

Power supply and PoE capability.

• Operates on standard AC voltage (100 - 240V, 1A)

• Standby power consumption: approx. 3 W

• Full power consumption in active operation: max. 65 W total

• PoE per port: max. 30 W, total max. 65 W

Network ports

• 4x 10/100 Mbps PoE/PoE+ port

• 2x 10/100 Mbps uplink ports

Material & dimensions

• Housing: metal, suitable for desktop or wall mounting

• Dimensions: approx. 140 × 115 × 40 mm

• Weight: approx. 470 g (720 g including packaging)

Working environment

• Temperature range: -20 °C to +55 °C

• Relative humidity: up to 90%

• >Protection rating: IP30

• Indoor use

• Integrated lightning protection up to 4 kV

Network standards & features

• Supports IEEE 802.3af (PoE) and IEEE 802.3at (PoE+)

• MAC address table for approx. 1,000 devices

• CCTV mode possible: longer transmission up to 250 m at 10 Mbps
