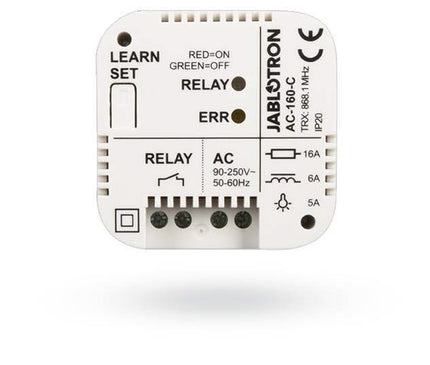

Jablotron AC-160-C wireless multifunctional power relay, flush-mounted model

Product form
Delivery time — 1 to 2 business days
Want your whole order delivered quickly?

Choose items that all show “In stock — ready to ship”. Fast delivery applies when every ordered quantity is available. If one item has a longer delivery time, we dispatch your order once it is complete. The longest delivery time then applies.

We dispatch every day except Saturday and Dutch public holidays. For items not in stock, we count business days (Monday to Friday), excluding Dutch public holidays. Supplier or carrier delays may affect the estimate. A delivery date is not yet available for reservations.

Estimated delivery within 1 to 2 business days.

CHF 126.00CHF 104.13 Incl. VATExcl. VAT

    • American Express
    • Apple Pay
    • Bancontact
    • Bizum
    • BLIK
    • Google Pay
    • iDEAL Wero
    • Maestro
    • Mastercard
    • MobilePay
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa

    B2B Installers order with discount

    • Showroom in Gorinchem
    • The best service and warranty
    • 3500+ customers give us a 4.71 / 5
    • Free remote installation
    • Free returns within 14 days

    check Associated products for Jablotron AC-160-C wireless multifunctional power relay, flush-mounted model

    Barcode: 8595614115155

    Size chart

    Jablotron AC-160-C wireless multifunctional power relay, flush-mounted model

    The relay can also be installed as an independent device, responding to the activation of unidirectional wireless detectors of the JA-15x series, for example. In this case, the relay is activated according to the mode selected for the relevant detector (choice of 5 modes): extended copy, impulse, status change, shutdown and blocking). It provides a switching contact relay with galvanic and safety isolation for switching a current load of 230V/16A. It occupies one position in the system.

    • Nominal supply voltage 100-230 V, 50-60 Hz
      Internal energy consumption at 230 V AC (min / max) 0.2 W / 0.7 W
      Operating frequency 868.1 MHz, Jablotron protocol
      Antenna internal
      Contact load capacity - protection class II Max. switched voltage 250 V AC
      Resistance load (cosφ=1) max. 16 A
      Inductive, capacitive load (cosφ=0.4) max. 8 A
      Halogen lighting max. 1000 W
      Minimum switched DC power supply 0.5 W
      Diameter of connected conductors max. 2 x 1.5 mm2 ; max. 1 x 2.5 mm2
      Class of protection against ingress IP20
      Sizes 49 x 49 x 26 mm
      Operating temperature range -10 °C - + 40 °C, RH 75% non-condensing
      Compliant with ETSI EN 300 220-1, EN 50130-4, EN 55022, EN 60950-1
      Operating conditions ERC REC 70-03
