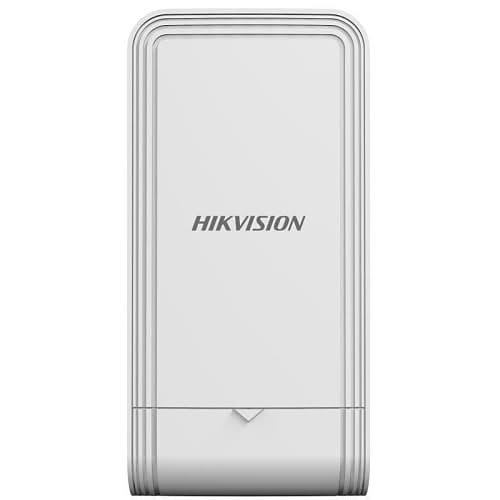

DS-3WF03C-5AC/O, Wireless bridge 35degree, 15Km

Hikvision's wireless bridges are designed to create network connectivity through 2 or more antennas for camera applications. The antennas with PoE input and output, are suitable for point-to-point and point-to-multi-point applications. Each antenna has a convenient Wi-Fi management function for local network, configuration and monitoring via WebUI, with simple installation indicators on the side. Wireless bridges from Hikvision provide flexible and high-performance solutions for wireless video applications.

For reliable and stable operation of a camera system, good network equipment is essential. Hikvision has a wide range of switches with a particular focus on video applications. Various switches are available with high throughput, powerful PoE capabilities and optimization functions for video transmission. Available in managed and unmanaged versions, there is a suitable switch for every video application.

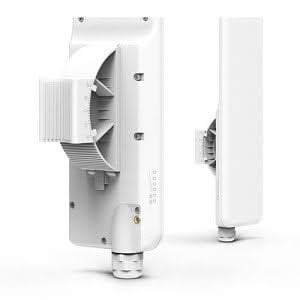

The antennas are suitable for wall and pole mounting. For pole mounting, a set of plastic binding straps is included for one-time use. Hose clamps can also be used but should be ordered separately.

Point to Multipoint: This product is suitable for Point to Multipoint. This is not plug and play. It requires web configuration. Our advice is to configure and connect the antennas first. And place the antennas only when the links are working.

Free line of sight is required for good stable operation: In order to have good operation, you must apply 2 antennas and they must have free line of sight to each other. Buildings, trees and other obstacles should be avoided. The antennas have a signal indicator that shows the quality of the connection. The antennas have a signal indicator that shows the quality of the connection. Try to place the antennas within sight of each other so that the indicator gives the highest possible indication

Specifications:

Hardware:

• Interfaces: 1 × PoE RJ-45 (1000 Mbps), 1 × LAN RJ-45 (1000 Mbps)
• Power Supply: PoE IN: 802.3at
• Included: Power adapter, antenna
• Ethernet ports: 2 (10/100/1000 Mbps)
• Power consumption: < 30 W
• External ports: 2 × RJ-45, 1 × Reset
• Indicator lights: Power, LAN, Signal intensity

  Features:


• Encryption: WPA-PSK, WPA/WPA2, hidden SSID
• Management: Web configuration, Syslog, NTP
• Certification: CE, FCC
• Network Protocols: UDP, TCP, HTTPS, IPv4, NTP, DHCP
• TDMA: Yes, with enhancements

  General:


• Range: Up to 15 km at 35° angle
• Temperature: -30 °C to +70 °C
• Humidity: 5%-95%, non-condensing
• Weight: 0.46 kg (gross), 0.307 kg (net)
• Dimensions: 132 × 228 × 91 mm (packaging), 90.8 × 57.8 × 187.8 mm (product)
• Mounting: Pole and wall mounting (ty-wraps included)
