    The indoor stations can only display locally connected cameras on the screen, there is no functionality to display images via Hik-Connect on an indoor station that is connected stand-alone.

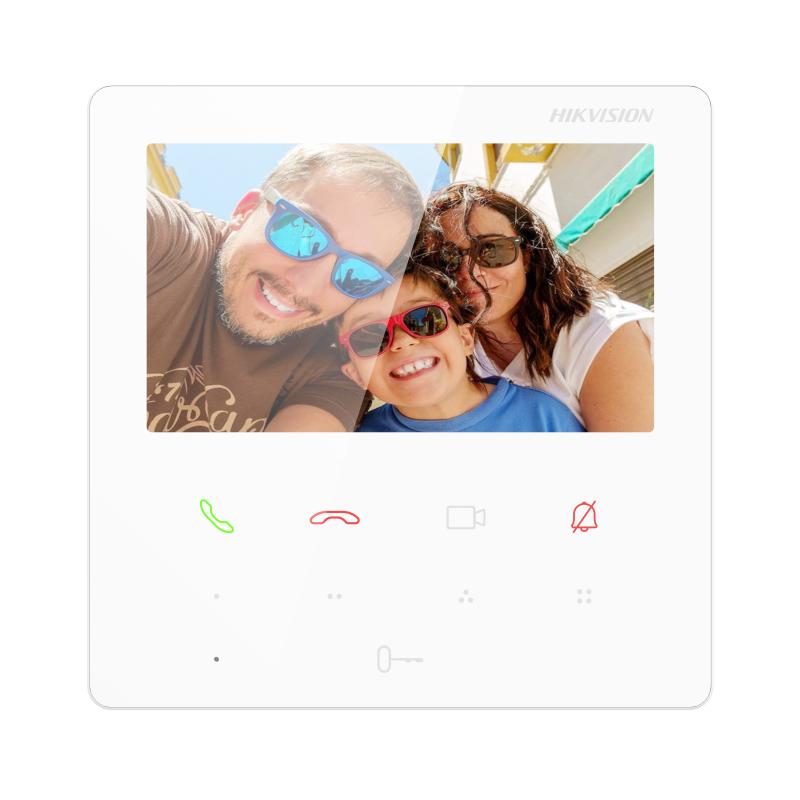

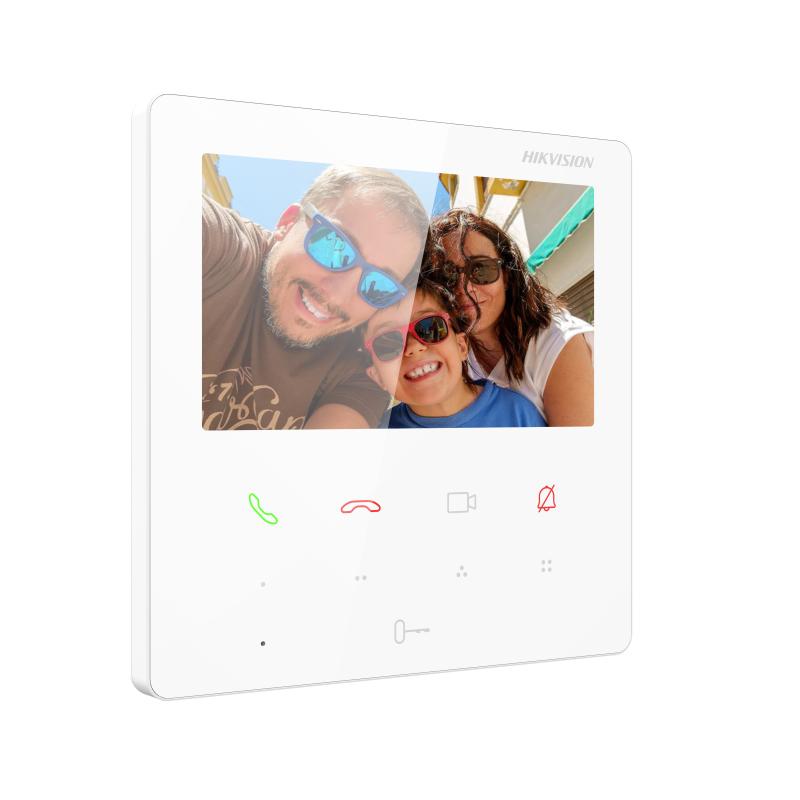

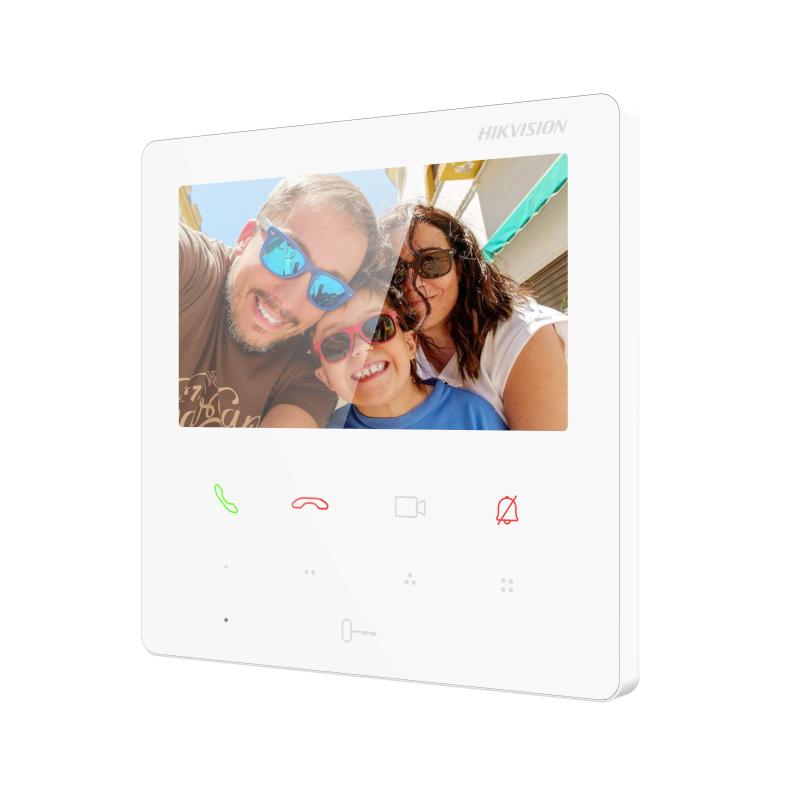

    DS-KH6110-WE1 Indoor station with 4.3 inch screen PoE/12v WiFi is a white small model indoor station equipped with WiFi.

    This new Hikvision DS-KH6110-WE1 intercom screen can be connected to all 2nd generation Hikvision IP doorbells. It can be connected via PoE to a PoE switch or via WiFi using an optional (see related products) 12 volt adapter.

    KH6 Series IP-based indoor station with easy and quick installation: user-friendly design.
    4.3-inch colorful touchscreen with resolution of 480 × 272.
    Standard PoE power without additional power adapter
    Convenient Hik-Connect APP Mobile operation
    View live video from door stations and paired cameras
    Convenient for users to customize functions to their own usage habits with 4 custom touch buttons

    Specifications:

    • System Parameters
    • Operating system - Linux
    • ROM - 16MB
    • RAM memory - 128MB
    • CPU - Built-in processor

      Display parameters
    • Screen size - 4.3 inches
    • Operating Method - Capacitive touch screen with 9 touch buttons
    • Type - Colorful TFT
    • Resolution - 480 × 272

      Audio Parameters
    • Audio Compression Standard - G.711 U, G.711 A
    • Audio input - Built-in omnidirectional microphone
    • Audio output - Built-in speaker
    • Audio compression bit rate - 64 Kbps
    • Audio quality - Noise reduction and echo cancellation
    • Volume control - Adjustable

      Network parameters
    • Communication protocol - TCP/IP, SIP, RTSP
    • Wi-Fi Standard - Wi-Fi 802.11 b/g/n, 2.4 GHz

      Device Interfaces
    • Network interface - 1 RJ-45 100 Mbps

      General
    • Buttons - 9 touch buttons
    • Installation - Wall mount, table mount
    • Weight - With packaging: 336.6 g (0.7 lbs) Without packaging: 197.8 g (0.4 lbs)
    • Operating Temperature - -10 °C to 50 °C (14 °F to 122 °F)
    • Operating humidity - 10% to 90%

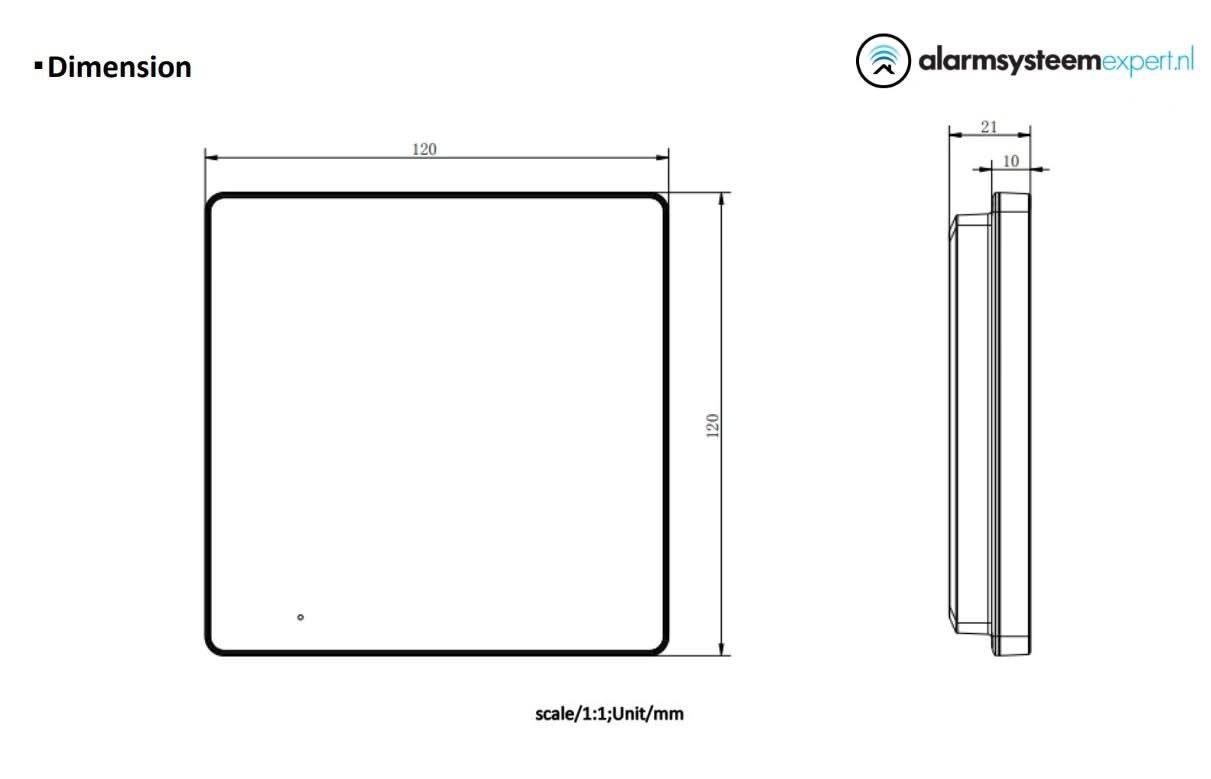

    • Dimensions - 120 mm × 120 mm × 21 mm (4.7" × 4.7" × 0.83")
    • Application environment - Indoor
    • Power Consumption - ≤ 4 W
