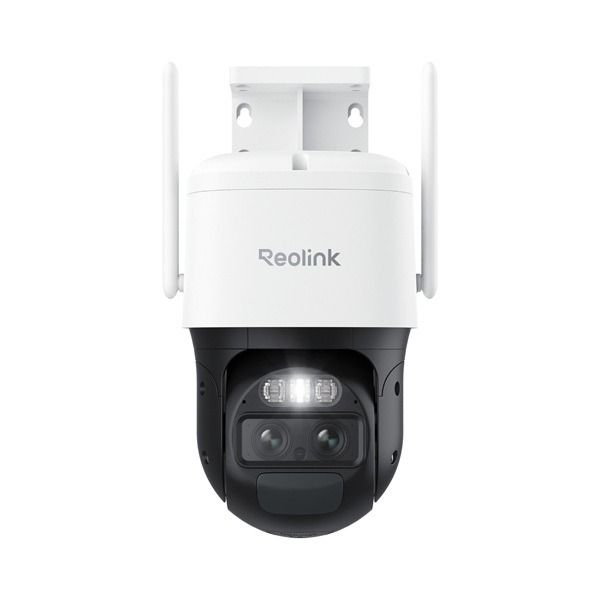

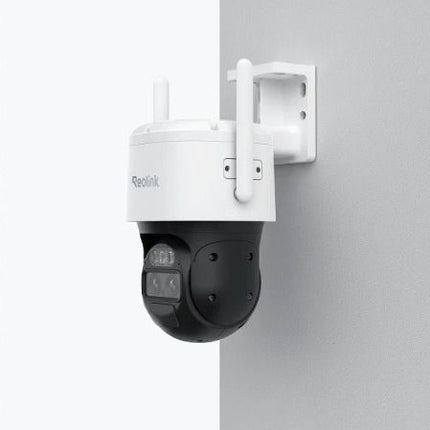

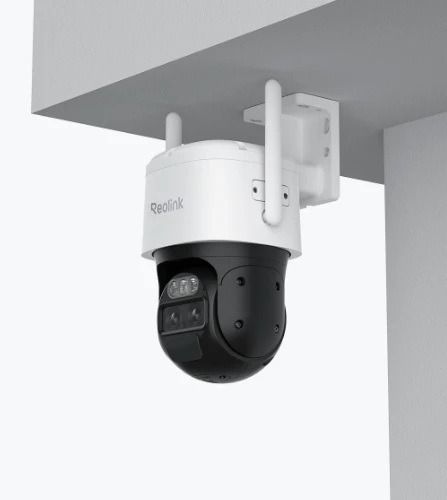

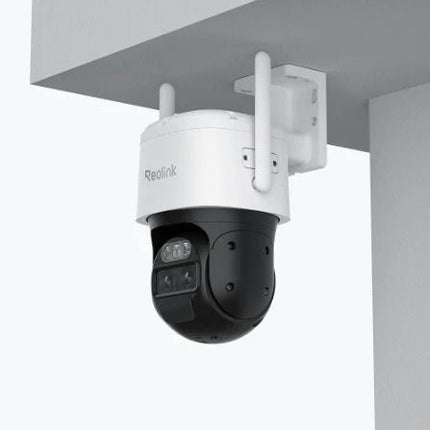

This 4K/8MP dual-lens dual-view battery camera provides remote access to your business with 4G LTE. With a long-lasting battery and (optional) a Reolink Solar Panel 2, you can continuously observe your business or premises. The G770 combines wide-angle and telephoto lenses and displays both images on one screen. The close-up view uses 6x hybrid zoom and PT capabilities to track and focus on targets.
- 8MP Ultra HD resolution for detailed images and videos;
- 360° coverage. Camera can rotate 355° and tilt 90° for long range;
- You can turn on the spotlight at night for bright color images or use the IR LEDs for black and white monitoring up to 30 meters in the dark (spotlight can be manually turned off);
- Intelligent person, vehicle and animal detection with accurate notifications;
- PIR detection, define and adjust motion zones as desired;

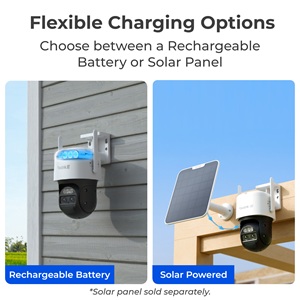

- The G770 has a long-term rechargeable battery but also works with a Reolink solar panel (not included), for continuous power;
- Support for local storage on a micro SD card up to 128GB. Or use Reolink Cloud or an FTP server;
- Works on 4G LTE mobile network, with nano SIM card (not included). Can be used in any location, perfect for areas without WiFi coverage or electricity;
- Ideal solution for video surveillance with no hassle and no wiring;
- Two-way audio, built-in microphone and speaker;
- Dual lens, Dual view, 6x hybrid zoom;
- To be used in all weather conditions, camera is IP65 weatherproof;
- With time lapse video function;
- Compatibility with SmartHome devices such as Google Assistant allows instant access to the live view of the camera via a simple voice command;
- Total control, anywhere, anytime. With real-time notifications, view images where and when you want, customizable detection zones and smart peel off in the free app (iOS and Android) on smartphone or tablet.
Specifications:
-
Model: Reolink G770-W
- Video & Audio
- Sensor: 1/3" CMOS Sensor
- Video Resolution: Up to 3840 × 2160 (8MP) @ 15 frames/sec
- Lens: f=2.8mm @ F1.6, f=8mm @ F1.6
- Video Format: H.264, H.265
- Viewing angle:
- f=2.8mm: Horizontal 108°, Vertical 57.3°
- f=8mm: Horizontal 38°, Vertical 21.2°
- Day & night: IR-cut filter with auto-switching
- IR night vision: Up to 30 meters (2 pcs / 850 lm)
- Color night vision: Spotlight 1 pcs / 6500K / 450 lm
- Zoom: 6× hybrid zoom
- Audio: 2-way audio
- Software features
- Frame rate:
- Mainstream: 10 fps - 15 fps
- Substream: 10 fps - 15 fps
- Code rate:
- Mainstream: 1024 Kbps - 4096 Kbps
- Substream: 64 Kbps - 512 Kbps
- OS: PC (Windows, Mac OS); Smartphone (iOS, Android)
- Smart alarm: PIR detection, person detection, vehicle detection, animal detection
- Protocols: SSL, TCP/IP, UDP, UPnP, SMTP, NTP, P2P
- Max users: Up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
- Works with: Google Assistant, Reolink Cloud
- Recording: Motion-activated recording
- 3G & 4G bandwidth
- Frequency bands (Europe):
- LTE FDD: B1 / B3 / B7 / B8 / B20 / B28A
- WCDMA: B1 / B8
- Transmission data:
- LTE FDD: Max 10 Mbps (DL), Max 5 Mbps (UL)
- LTE TDD: Max 8.96 Mbps (DL), Max 3.1 Mbps (UL)
- HSPA+: Max 42 Mbps (DL), Max 5.76 Mbps (UL)
- UMTS: Max 384 Kbps (DL), Max 384 Kbps (UL)
- Power
- Battery: 7.2V 5100mAh rechargeable battery (life depending on settings, usage & temperature), 36.72 Wh
- Solar panel: Reolink Solar Panel 2 USB-C (optional)
- DC power: 5V / 2A
- Interface
- Power: USB Type-C port
- System: Reset button

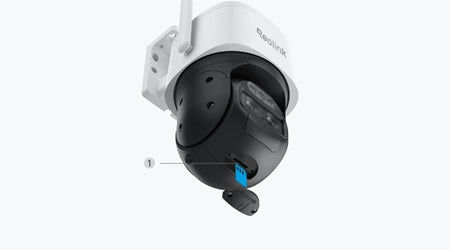

- Local storage: Micro SD card slot (max. 128GB)

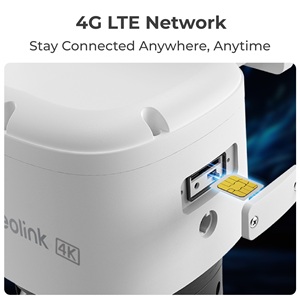

- Network: Nano SIM card slot
- Audio: Built-in microphone & speaker
- Pan & Tilt
- Pan & Tilt: Pan 355°, Tilt 0° ~ 90° (speed adjustable)
- Preset: 32
- Auto Tracking: Supported
- Operating Environment
- Operating Temperature: -10° ~ 55° C
- Operating Humidity: 20% ~ 85%
- Weatherproof: IP65
- Dimensions & Weight

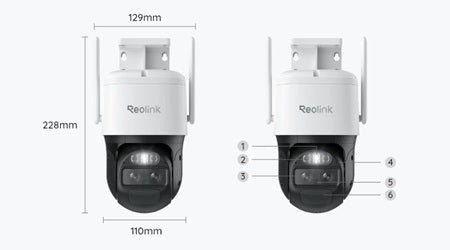

- Dimensions: 228.2 × 147 × 129 mm
- Weight: 1.4 kg
