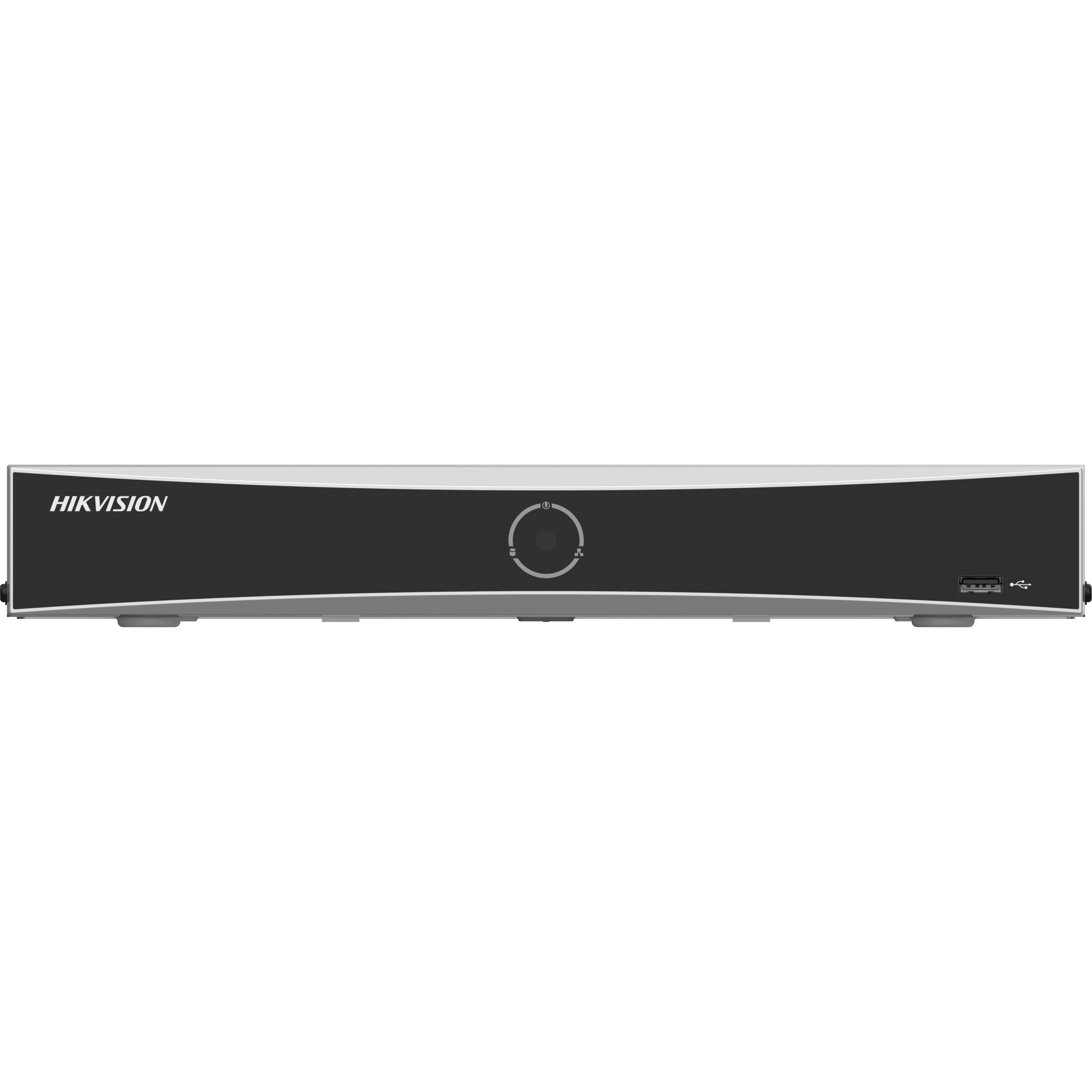

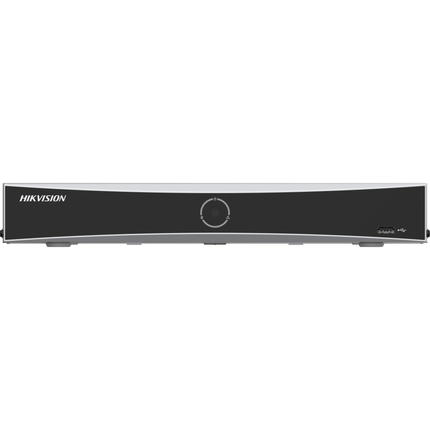

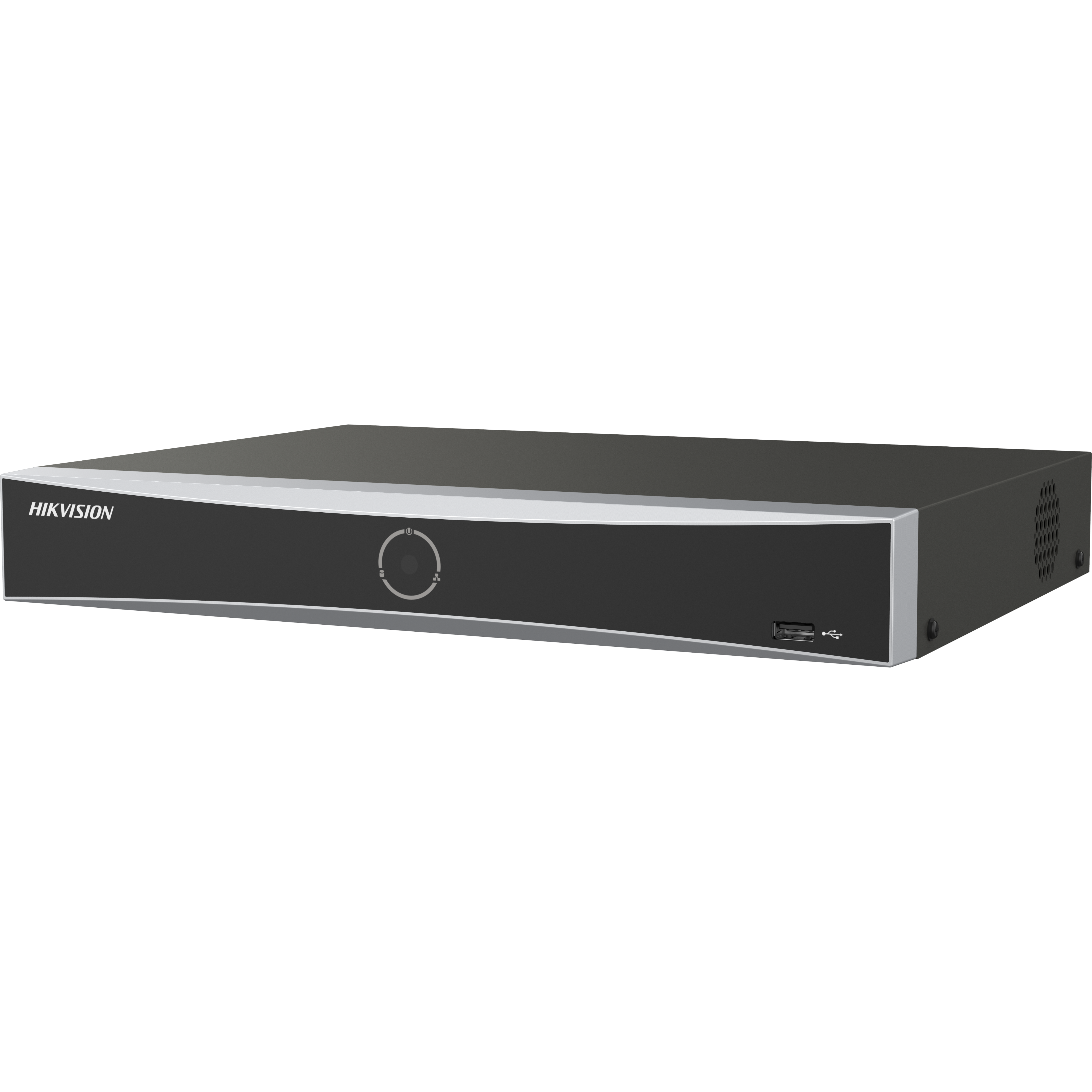

The Hikvision DS-7604NXI-K1/4P/VPRO is an advanced VPro Series 4-channel network video recorder (NVR) designed for professional security installations where smart analytics and reliability are key. With integrated AI functionality and Power-over-Ethernet (PoE), this recorder is ideal for both small and medium-sized surveillance systems.
Smart Security with AI
This NVR uses Hikvision's AcuSense technology, which accurately recognizes people and vehicles. This greatly reduces false alarms caused by moving leaves or animals, for example. Features such as facial recognition, perimeter security and intelligent motion detection ensure efficient and targeted surveillance.
AcuSearch and AcuSeek allow you to search for specific events or people in recorded images at lightning speed, significantly reducing the retrieval time.
Plug & Play installation
The DS-7604NXI-K1/4P/VPRO features 4 built-in PoE ports, allowing IP cameras to be directly connected without additional switches or power supplies. This makes installation simple and straightforward.
Powerful performance
- Support for up to 4 IP cameras up to 12MP resolution
- H.265+/H.265 video compression for efficient storage
- Up to 40Mbps incoming bandwidth
- 4K HDMI output for razor-sharp playback
- Support for 1 SATA hard drive up to 16TB
Flexible and future-proof
The recorder supports various network protocols and can be easily accessed remotely via PC or mobile app. With high decoding capacity and smart analysis capabilities, this system is ready for modern security requirements.
Key Benefits.
- AI-driven detection of people and vehicles
- Fewer false alarms through intelligent analysis
- Easy installation with 4x PoE
- Suitable for high resolution cameras up to 12MP
- Fast search functions in recordings (AcuSearch/AcuSeek)
Specifications:
Video & recording
- Number of channels: 4 IP cameras
- Maximum resolution: up to 12 MP
- Video compression: H.265+, H.265, H.264+, H.264
- Incoming bandwidth: 40 Mbps
- Outgoing bandwidth: 80 Mbps
- Recording resolutions: 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p and below
- Simultaneous playback (live view): 1 / 2 / 4 channels
- Synchronous playback: 4 channels
AI & intelligent features
- AcuSense technology (human and vehicle detection)
- Face recognition (up to 50,000 faces in database)
- Perimeter security (line crossing / intrusion detection)
- Motion Detection 2.0 (intelligent motion detection)
- AcuSearch & AcuSeek (smart search in recordings)
- Support for ANPR and VCA via cameras
Decoding & performance
- Decoding capability:
- AI on: up to 12 channels @ 1080p
- AI off: up to 24 channels @ 1080p
- Synchronous playback: 4-ch
- Support video + audio streams
Video outputs
- HDMI: up to 4K (3840 × 2160) @ 30Hz
- VGA: up to 1080p
- Independent HDMI/VGA output
Audio
- 1x audio input (RCA, two-way audio)
- 1x audio output (RCA)
- Audio compression: G.711, G.722, G.726, AAC, MP2L2

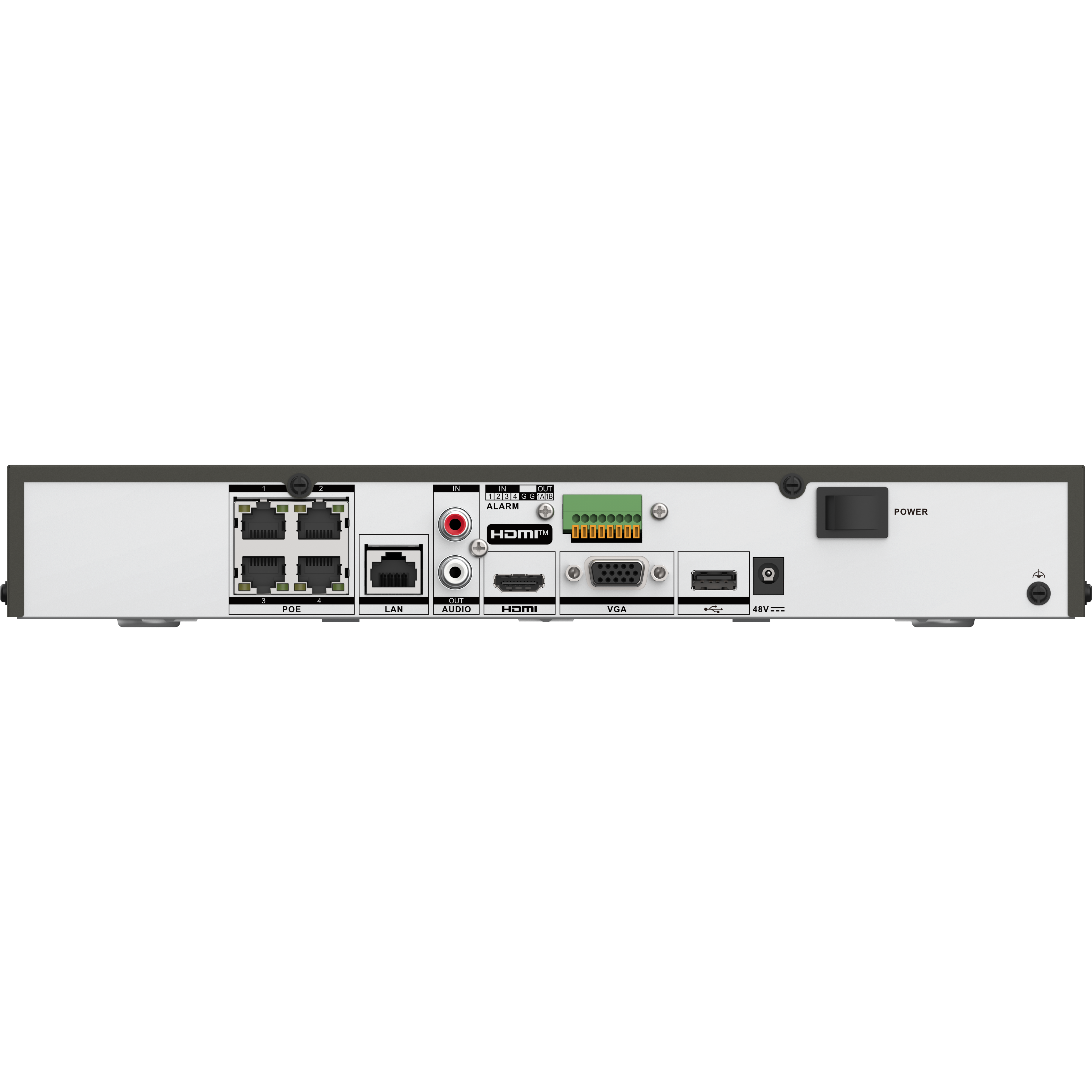

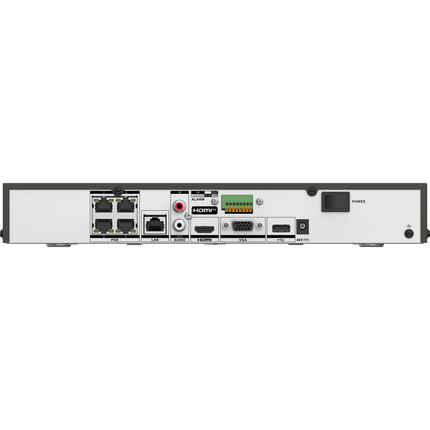

Network
- 1x RJ-45 Gigabit Ethernet (10/100/1000 Mbps)
- Up to 128 remote users
- Supported protocols: TCP/IP, DHCP, IPv4/IPv6, RTSP, HTTPS, ONVIF et al.
PoE (Power over Ethernet)
- 4x PoE ports (RJ-45)
- Standaard: IEEE 802.3af/at
- Max. PoE power: ≤ 50W
- Plug & Play camera connection
Storage & connectors
- 1x SATA connection
- Max. storage capacity: up to 16 TB
- USB: 2x USB 2.0 (front + rear)
- Alarm in/out: 4 / 1
General
- Power supply: 48 VDC, 1.35 A
- Consumption: ≤ 10W (without HDD)
- Operating temperature: -10°C to +55°C
- Dimensions: 319 × 240 × 48 mm
- Weight: ± 1 kg (without HDD)
