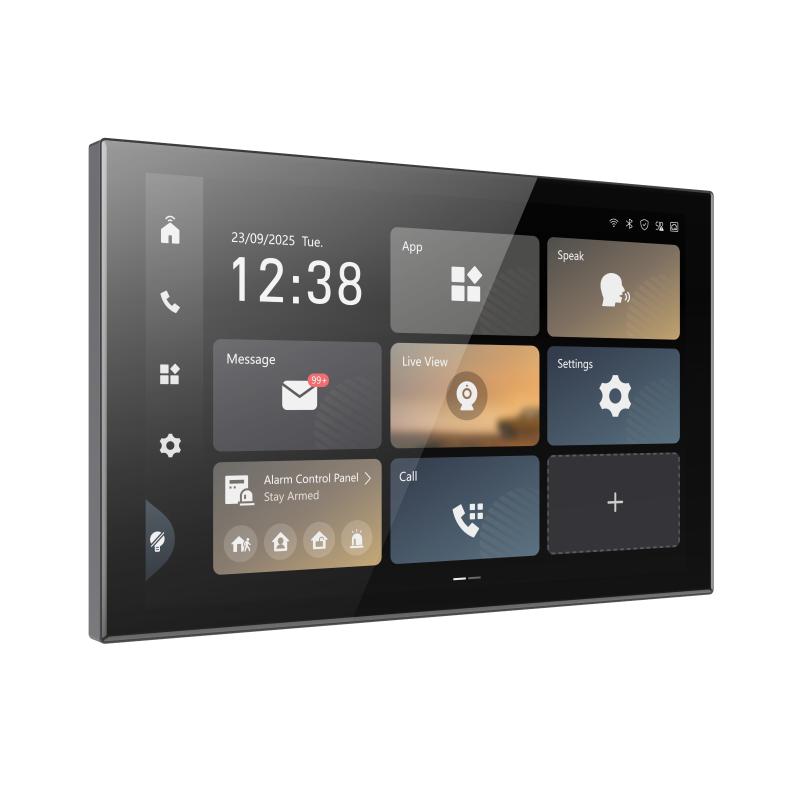

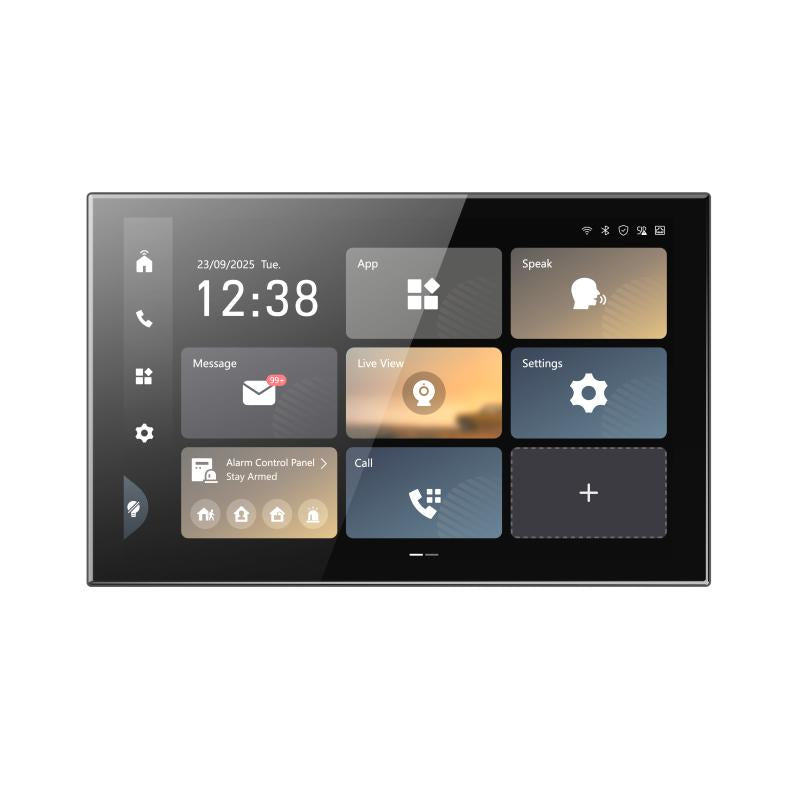

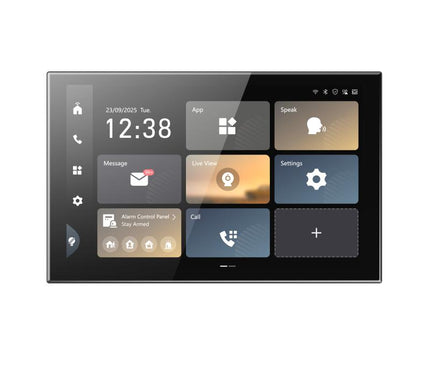

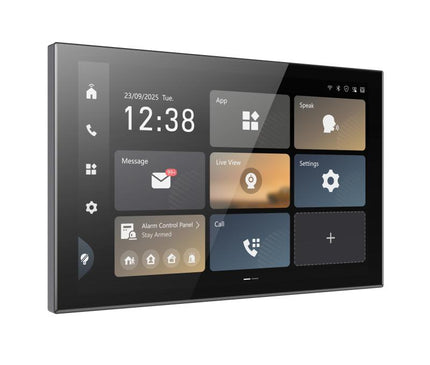

Hikvision DS-KC9570-WTE1/S, Ultra Series 10" Intercom Monitor / Smarthome Control Panel

DS-KC9570-WTE1/S, is an advanced 10.1-inch touchscreen control panel that acts as the central control point for both video intercom and complete smart home automation. This model is designed for users who want more than just door communication and want to centrally control their home or building through a single interface.

The system runs on Android 14 and features a powerful quad-core processor with 4 GB of RAM and 16 GB of storage, ensuring fast and stable performance. The bright IPS touchscreen with 1920 × 1200 resolution offers a sharp and clear display of camera images, intercom calls and home automation settings.

What sets this model apart is its comprehensive smart home functionality. The panel can serve as a central hub for lighting, climate control (HVAC), curtains, alarm systems and IP cameras, among others. This allows you to easily manage all major systems within a home or business from a single screen.

In addition, the DS-KC9570-WTE1/S supports both WiFi 6 and wired networking (with two RJ45 ports for separate intercom and smart home networks), ensuring a stable and flexible installation. Thanks to built-in microphones and speakers with noise reduction and echo-canceling, clear two-way communication is always guaranteed.

With support for multiple door stations, indoor stations and IP cameras, this control panel is ideal for both homes and larger installations where integration, overview and ease of use are key.

In short, the Hikvision DS-KC9570-WTE1/S is the perfect choice for those looking for a powerful and versatile solution that brings intercom, security and home automation together in one modern and user-friendly system.

Specifications:

Operating system: Android 14
- Processor: embedded high-performance processor
- RAM: 4 GB
- Storage: 16 GB

- Screen: 10.1-inch IPS touchscreen
- Resolution: 1920 × 1200

- Microphone: 2× omnidirectional (built-in)
- Speaker: 2× built-in
- Audio codecs: G.711A, G.711U, G.722.1, G726, Opus, AAC, AAC_LD
- Audio bit rate: 64 Kbps
- Features: noise reduction and echo canceling

- Support for:
- Up to 17 door stations
- Up to 15 indoor extensions
- Up to 16 IP cameras

- Internal memory:
-

200 photos
- 200 alarms
- 200 unlocks
- 200 tamper events

- Ethernet: 2× RJ45 (10/100 Mbps, separate for intercom and smart home)
- WiFi: WiFi 6 (2.4 & 5 GHz)
- Bluetooth: BLE 5.0
- Protocols: IPv4, SIP, HTTP, HTTPS, RTSP, TCP/IP, UDP, DHCP, ONVIF

- Alarm inputs: 8
- Alarm outputs: 2
- RS-485: 1× (half duplex)
- Relays: 2× (max. 30V DC / 1A)
- TF card support: up to 256 GB
- Power input: 12V DC
- Power output: 12V DC / 200 mA

- Power supply: 12V DC (2.5A) or PoE (IEEE 802.3at)
- Power consumption: ≤ 24 W

- Mounting: surface mount
- Use: indoors
- Temperature: -10°C to +50°C
- Humidity: 10% - 90% (non-condensing)

- Dimensions: 246.6 × 155.8 × 23.6 mm
- Weight: approximately 555 g
- Proximity sensor: yes (±50 cm detection
