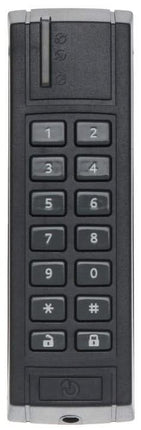

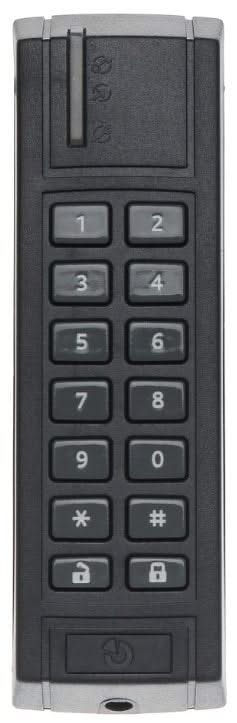

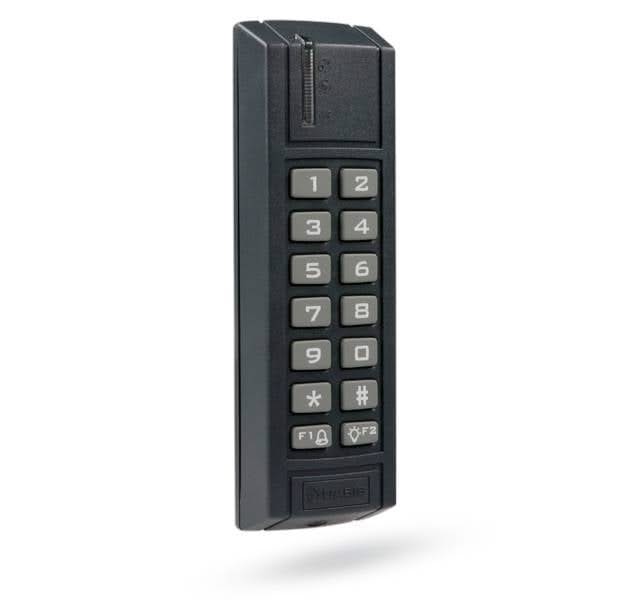

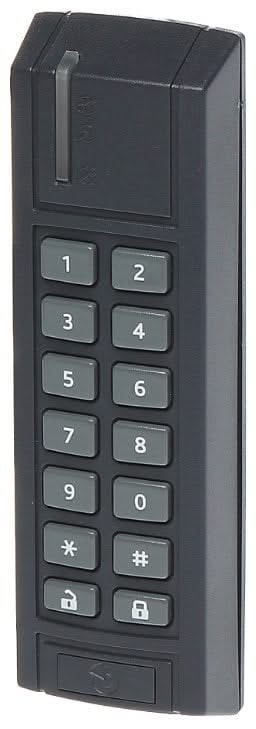

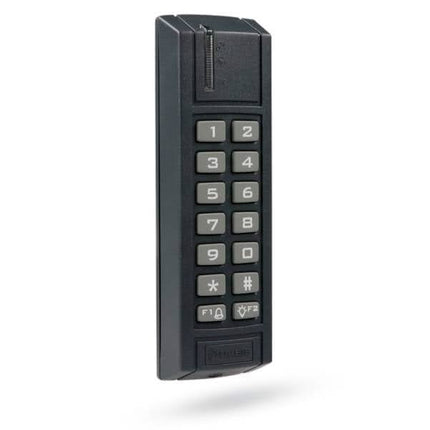

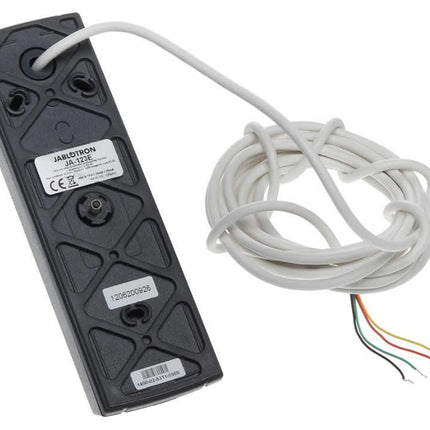

    Jablotron JA-123E-NFC BUS outdoor access module with RFID and keyboard


    The Jablotron JA-123E-NFC BUS outdoor access module with RFID 13.56Mhz (Mifare) and keypad can be used to activate a PG output that allows you to use a local control of, for example, an electric lock or the security system. This module works with the JA-103 and JA-107 PBX.

    Key features:

    • Current from the control panel bus, 12V, DC (8-15V)
    • Quiescent current consumption 15mA
    • Maximum current consumption 80mA
    • Type of control device 13.56 MHz
    • Maximum RFID magnetic field strength 10.37 dBuA/m (3m)
    • Compatible RFID card NFC, Mifare® Classic, Mifare® DESFire® 4, 7-byte UID
    • Dimensions 46x151.5x25mm
    • Weight 196g

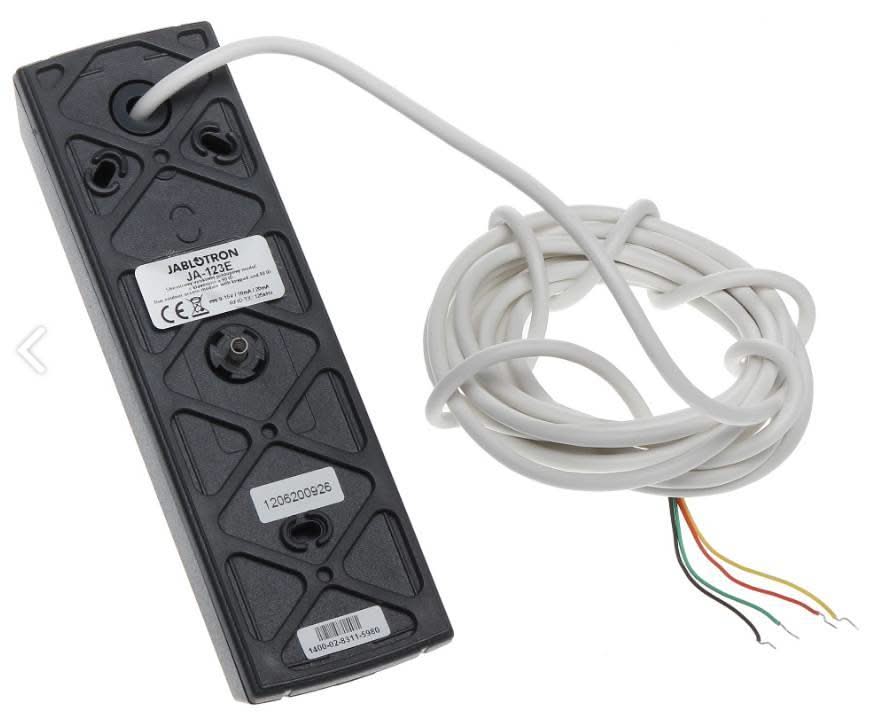

    • Connection cable length 3.0 meters
    • Operating temperature range -25 °C to +60 °C
    • Relative humidity 75% without condensation
    • Environment according to IV. Outdoor general
    • Classification Grade 2 according to EN 50131-1, EN 50131-3.
    • In addition, in accordance with ETSI EN 300330, EN 50130-4, EN 55032, EN 62368-1, EN IEC 63000
