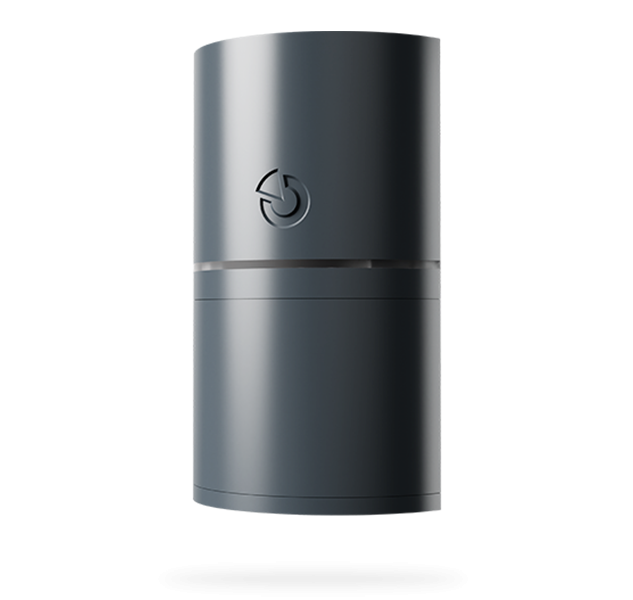

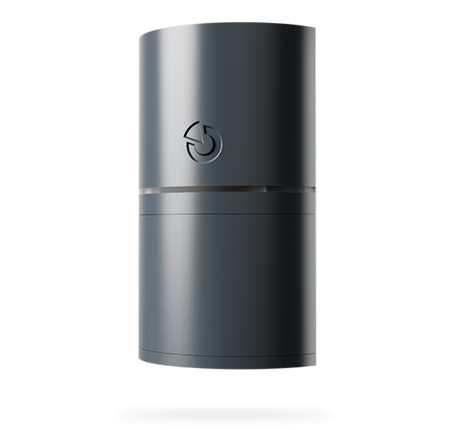

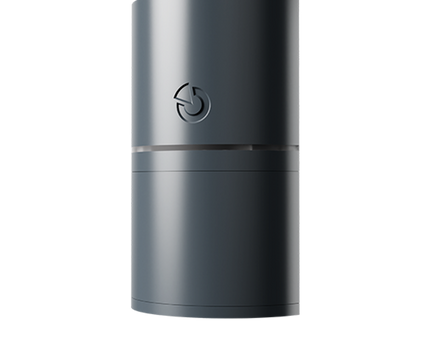

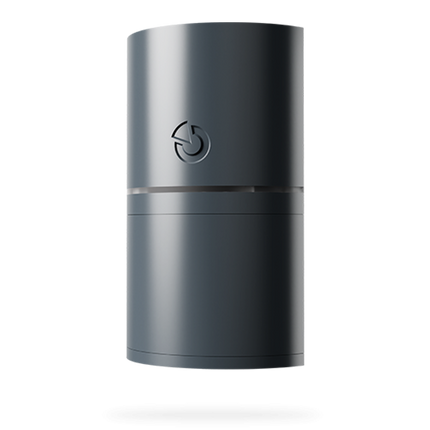

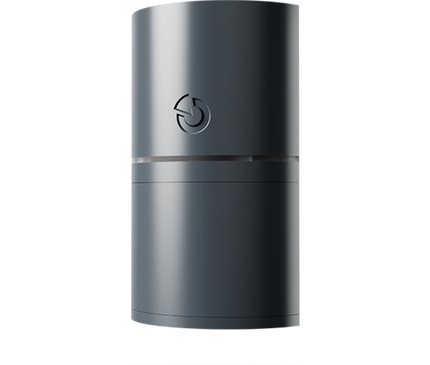

    JA-152P-AN, Wireless Motion Detector PIR Anthracite

    NOTE: Works only on the Midway Pro and Essex Pro and Mercury

    .

    The product is a wireless system device for the JABLOTRON 100+. It is designed to detect human body movements in buildings. The guaranteed detection coverage is 90°/12 m. The detector meets the highest quality and design requirements, making it suitable even for luxurious interiors.

    Specificaties:

    Compatible with F-Link 2.0.0 and higher
    Current 1 Lithium battery type CR123A (3 V/1500 mAh)
    Note: Battery not included
    Typical battery life 4 years (longest in smartwatch mode, at 20°C)
    Low battery voltage < 2.4V
    Current consumption in standby mode 30 μA
    Maximum current consumption 100mA
    Communication band 868.1 MHz, JABLOTRON protocol
    Communication range about 300 m (open terrain)
    Recommended installation height 2.2 - 2.5 m above the floor
    Detection angle/detection coverage 90°/12 metres
    Dimensies 62x110x40mm
    Weight (without battery) 90 grams
    Classificatie Security class 2/Environmental class II (in accordance with EN 50131-1)
    Operational environment In general
    Operational temperature range -10 °C to +40 °C
    Average operating humidity 75% RH, non-condensing
    Certifying body Trezor Test sro (no 3025)
    Corresponds to EN 50131-1 issue. 2+A1+A2, EN 50131-2-2, EN 50131-5-3+A1, EN 50131-6 issue 2+A1, ETSI EN 300 220-1,-2, EN 50130-4 issue 2+A1, EN 55032, EN 62368-1, EN 50581
    Can be operated according to ERC-REC 70-30
