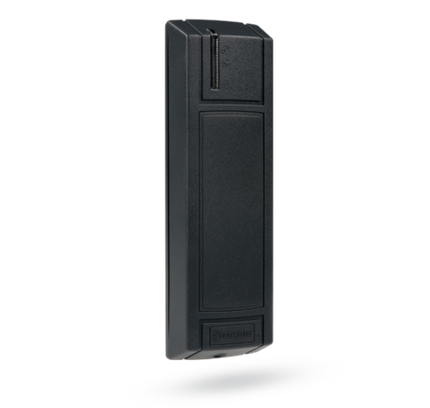

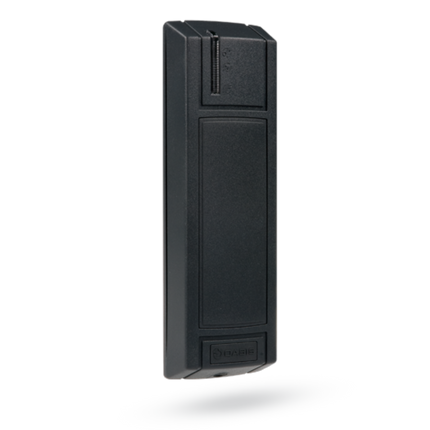

    JA-80N Card reader without keypad

    It usually controls access to a door, but it can also be used to control the control centre if necessary. Connect this unit to the control centre with a cable via a WJ-80 interface module. The JA-80N is a version which only has a card reader, not a keypad.

    Specifications:

    - Power supply 10 to 16V DC
    - Standby consumption Typical 60mA
    - Enclosure protection (EN 60529) IP65
    - Mechanical endurance (EN 50102) IK08
    - Environment (EN 50131-1): Class IV - General outdoor
    - Operating temperature: -25 To 60°C

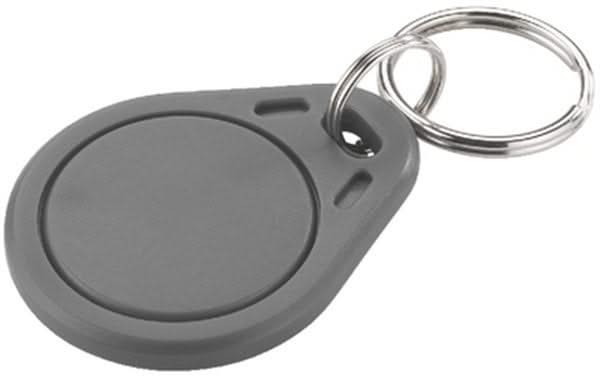

    - RFID card: Jablotron PC-01 or PC-02 (EM UNIQUE 125 kHz)
    - Dimensions: 46 x 150.5 x 22.5mm
    - Length of connecting cable: 1m
    - Complies with grade 2 (EN 50131-1, TS 50131-3)
