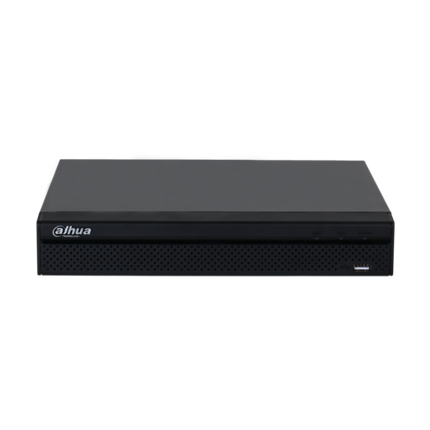

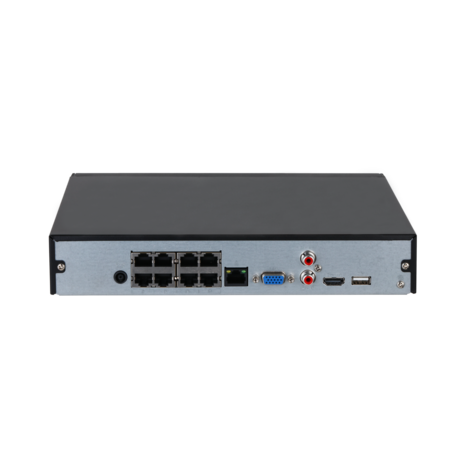

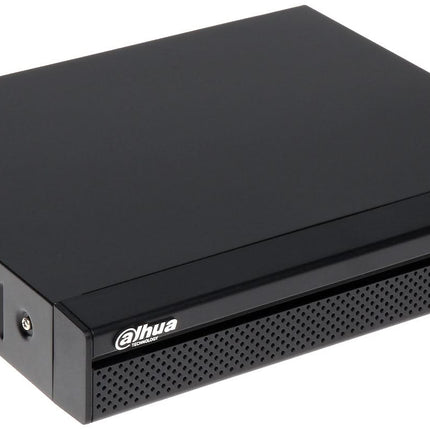

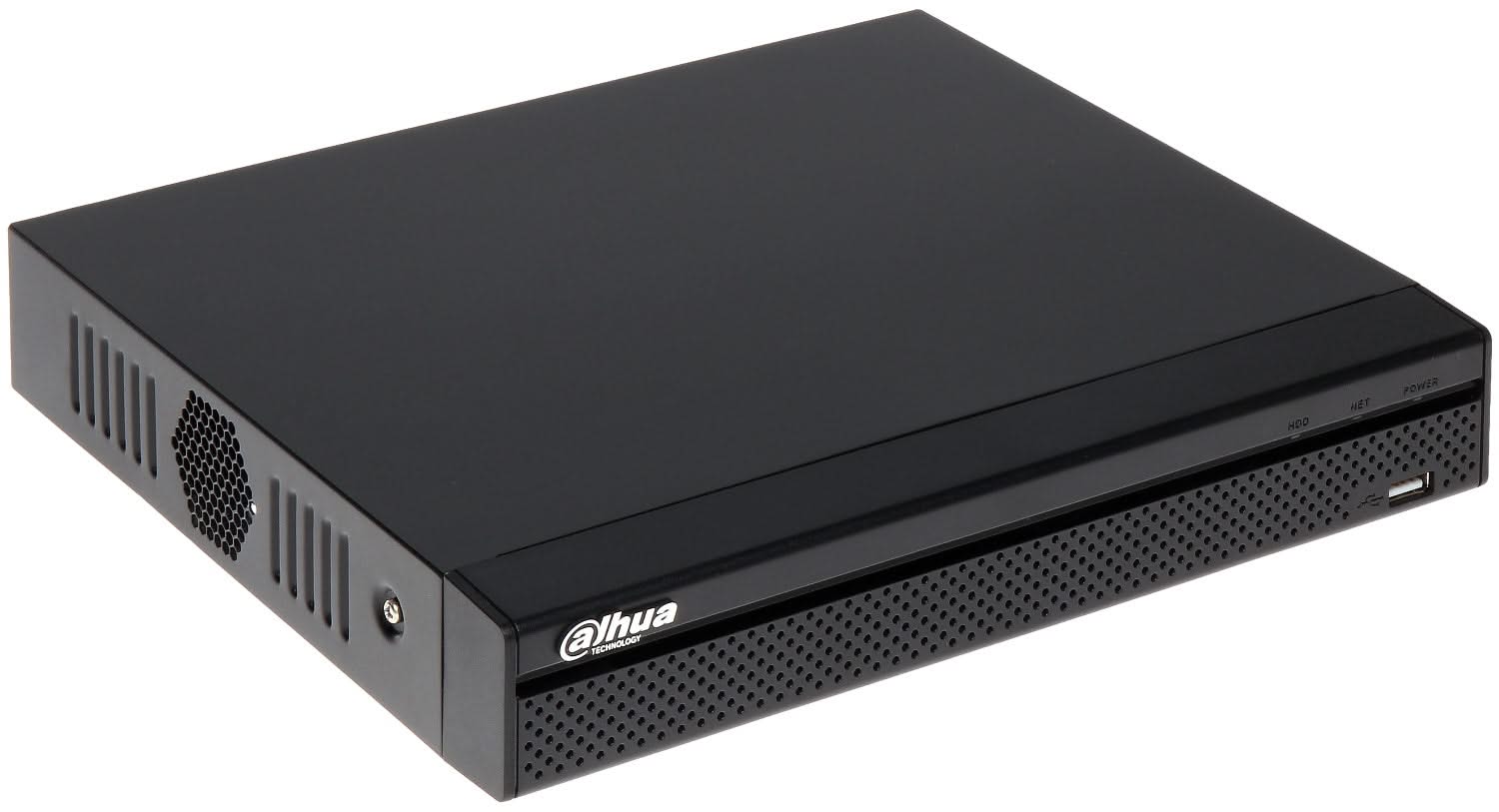

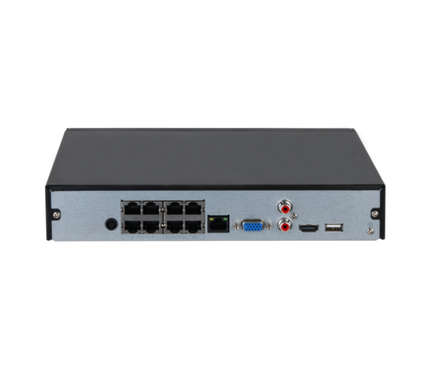

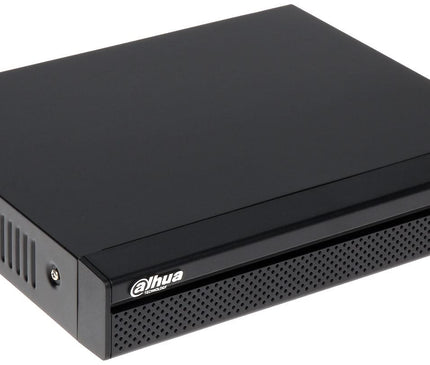

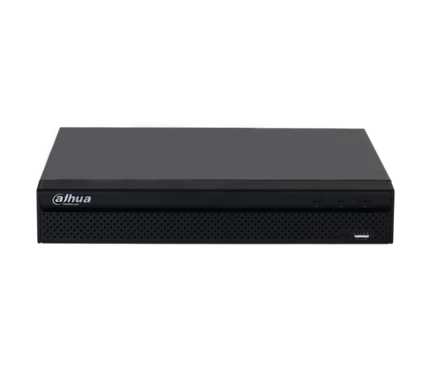

NVR2108HS-8P-i2, 8 Channel Compact NVR, Ultra HD, PoE

Note! Hard drive is not included!

The Dahua NVR2108HS-8P-I2 is a compact, powerful network video recorder (NVR) from the WizSense series, ideal for surveillance solutions where you want to use IP cameras with smart features and where simplicity of installation is important. Built-in PoE ports, AI capabilities, and support for high resolutions make it a suitable choice for retail stores, small businesses, offices, or residential homes.

This recorder connects up to 8 IP cameras via PoE (Power over Ethernet), which reduces cabling since both power and data transmission come through a single cable. AI features such as face recognition, perimeter protection (such as tripwire/intrusion) and advanced motion detection ("SMD Plus") allow you to better monitor relevant events and reduce false alarms. In addition, it supports high-resolution images - up to 12 MP - and efficient video compression to optimize storage and bandwidth usage.

Its size (1U compact) allows it to easily fit in a rack or on a standard shelf, with solid finish and cooling control (smart fan). The combination of modern features, ease of use and solid technical specs make this NVR a strong foundation for a reliable surveillance system.

Specifications:

• Video compression & formats
  - Smart H.265+ / H.265 / Smart H.264+ / H.264 / MJPEG
  - Maximum decoding power: 6 × 1080p @ 30 fps (adaptive decoding)

• AI functions
  - 1 channel for face detection and recognition (AI on device)
  - 1 channel perimeter protection (AI)
  - 4 channels SMD Plus (Smart Motion Detection)
  - AI search function: via metadata, or upload face photo for comparison

• Video inputs & channels
  - 8 access channels (IP cameras)
  - Supports PoE: 8 PoE ports built-in (data + power)

• Resolutions & video rates
  - Supported resolutions: up to 12 MP, 8 MP, 5 MP, 4 MP, 3 MP, 2 MP, 720p, D1
  - AI disabled: multiple channels supported at higher resolutions
  - AI enabled: shared use with more limited decoding

• Video Outputs & Display
  - HDMI output up to 4K resolution
  - VGA output (1080p)
  - HDMI + VGA possible simultaneously
  - Multi-screen layouts: 1 / 4 / 8 / 9 windows

• Network & bandwidth
  - Access board bandwidth (bandwidth): 200 Mbps
  - Storage/forwarding bandwidth: 200 Mbps / 100 Mbps
  - Network port: 1 × RJ-45 (10/100/1000 Mbps)
  - Supported protocols: HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS
  - Interoperability: ONVIF (profile T / S / G), SDK, CGI

• Storage & Backup
  - 1 SATA port (maximum ~ 10 TB)
  - Backup via USB devices

• Audio
  - Input / output: 1 × audio in / 1 × audio out (RCA)
  - Compression formats: PCM, G.711A/H, G.726, AAC

• Alarm / Event Linkage
  - Support for motion detection, video strip loss, alarm in/out, etc.
  - Linkage options: recording, snapshot, log, preset, tour, PTZ motion schedules

• General parameters
  - Enclosure: 1U compact size
  - Dimensions: 260 mm × 232.7 mm × 47.6 mm
  - Weight: approx. 0.92 kg without HDD
  - Temperature range: -10 °C to +55 °C
  - Ventilation: smart fan (cooling based on temperature / CPU load)

• Power & power consumption
  - Power supply NVR: DC 53 V, 1.8 A (capabilities as per datasheet)
  - PoE power: total PoE output ≤ 72 W, with maximum 25.5 W per port
  - Consumption NVR (without HDD): small - NVR itself uses little power + extra for PoE load
