NVR2108HS-I2, 1x LAN (No PoE) Max 8 IP cameras, Smart detection with Wizsense

The Dahua NVR2108HS-I2 is a compact, high-performance 8-channel network video recorder (NVR) from Dahua's WizSense series. The device is intended for smaller to medium-sized surveillance installations where smart analysis functions are desired. Support for high resolutions, intelligent AI features and efficient compression make it a versatile choice for professional IP surveillance.

Channel capacity & resolution

• Supports up to 8 IP cameras.

• Supports resolutions up to 12 MP for recording.

• Maximum decodable: 6 × 1080p@30 fps.

• For AI use, custom decoding (e.g., 4 × 1080p@30fps) apply for optimal performance.

Video compression & bandwidth

• Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG.

• Bandwidth indication: e.g. access 80 Mbps, storage 80 Mbps, throughput 60 Mbps.

AI analysis & intelligent functions.

• 1-channel face detection & face recognition (NVR-AI).

• 1-channel perimeter protection (NVR-AI).

• 4-channel SMD Plus (Smart Motion Detection) for intelligent motion analysis (human/vehicle) via camera-AI or NVR-AI.

Outputs & display

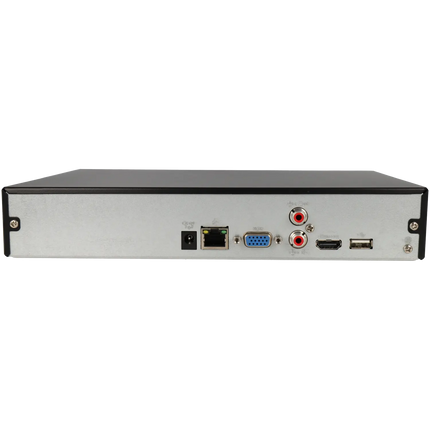

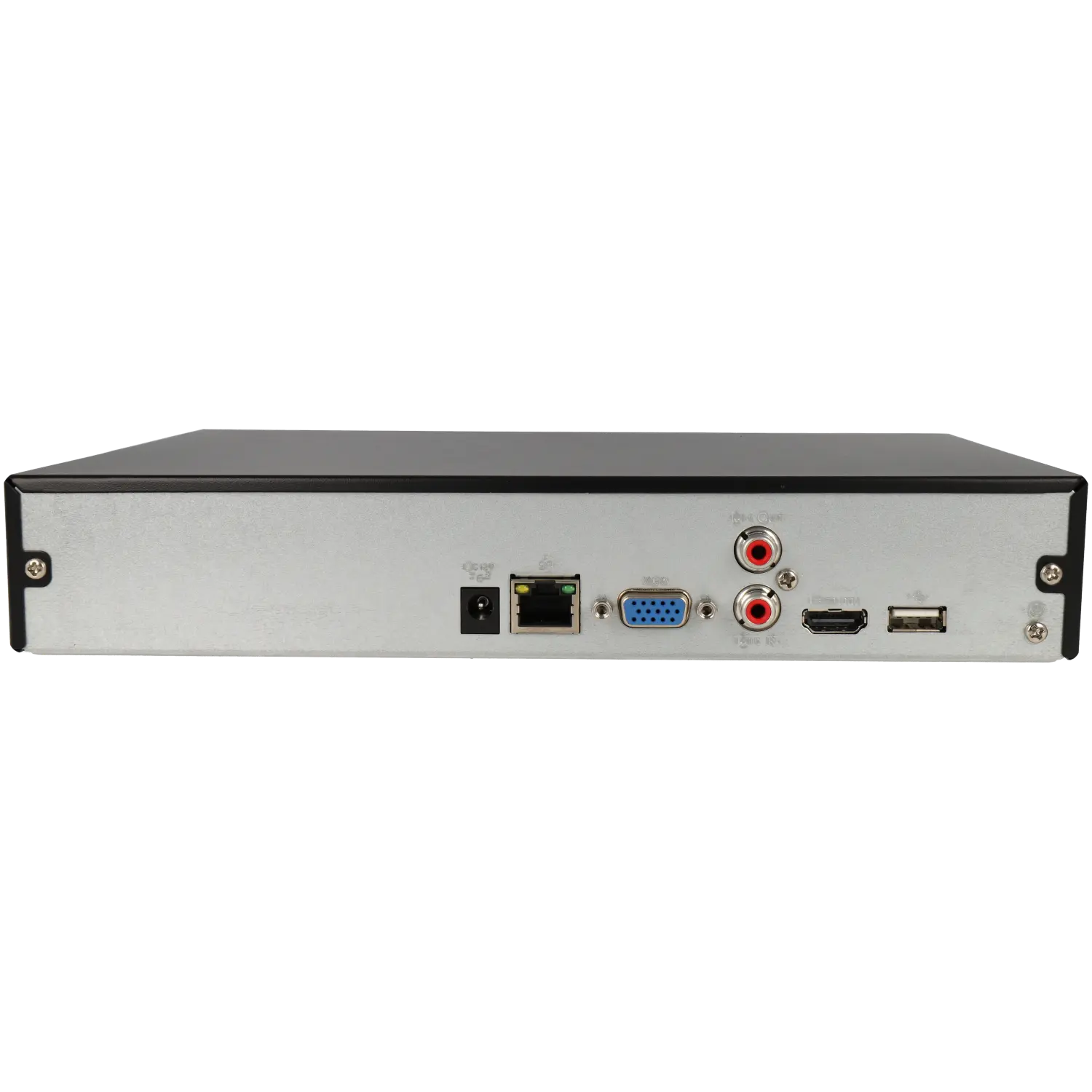

• Video outputs: 1 × VGA and 1 × HDMI (usable simultaneously).

• Multi-screen display: 1, 4, 8 or 9 images simultaneously.

Storage & physical characteristics.

• 1 SATA slot for one hard disk drive (HDD) supported.

• Maximum storage capacity according to some sources up to about 10 TB.

• Dimensions: approximately 260 × 232.7 × 47.6 mm.

• Temperature range: -10 °C to +55 °C.

Network & compatibility.

• Supports ONVIF compatibility for third-party cameras.

• Communication protocols: HTTP, HTTPS, RTSP, UPnP, DDNS, IPv4, IPv6 et al.
