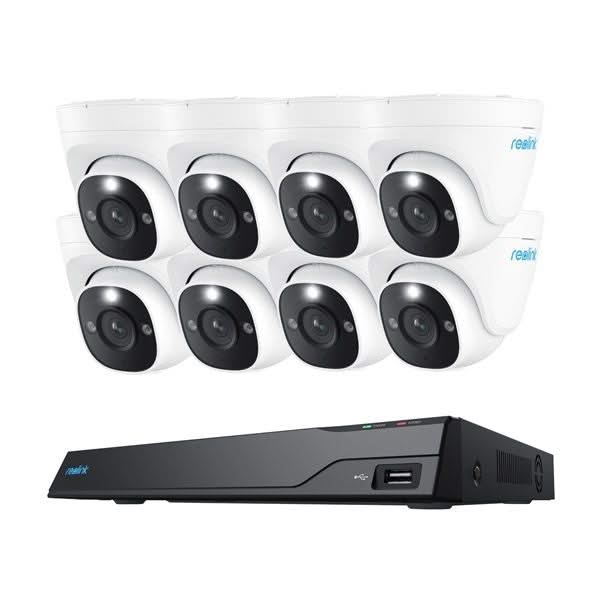

NVS16-8MD8, smart 8MP PoE Camera Set with 8 x Turret, NVR with 4TB HDD

Smart 8MP PoE security system with person, vehicle and animal detection. With the 16-channel NVR and 8 smart PoE outdoor cameras, you have a complete, easy-to-install set that provides excellent security for your home or business! The NVR with 16x PoE ports and internal 4TB HDD is very user-friendly. 8 x 18mtr network cable.

• Person, vehicle and animal detection

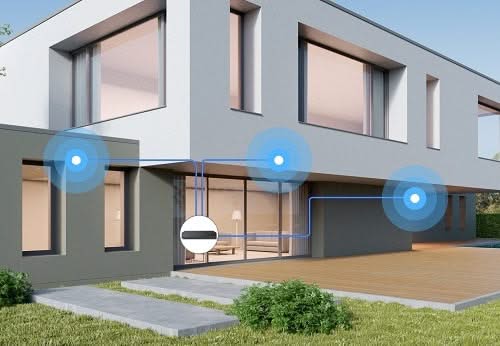

• Power over Ethernet, cameras quick and easy installation
• Non-stop recording with 4TB HDD (pre-installed) and storage capacity up to 12TB. This PoE set supports all cameras to record continuously simultaneously
• Can be expanded up to 16 cameras with Reolink cameras, bullet, dome or PTZ, 16MP, 12MP, 8MP, 5MP and 4MP
• Easy to install, place your cameras where you want
• IP66 weatherproof
• Easy to manage. Access and control your cameras via Reolink app or client
• Cameras (P334)

  Specifications:

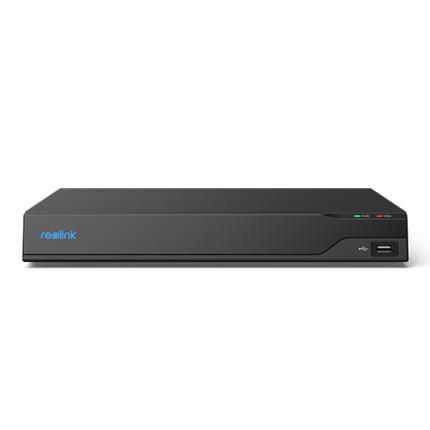

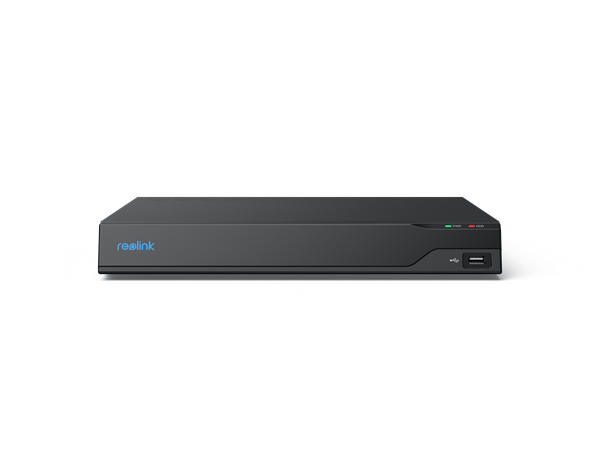

  Model: Reolink NVS16-8MD8
  Model	Model NVR	NVS16
  	Product Name	16-channel 12MP PoE NVR
  External Interface	Video out	1 VGA, 1 HDMI
  	Audio port	1 audio out channel, RCA
  	USB ports	2x USB 2.0
  	Ethernet ports	1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface for LAN/WAN 16, RJ-45 10/100 Mbps Self-Adaptive PoE Ethernet Interface for IP Cameras
  Video / Audio output	Video input	PoE IP camera x 16
  	Video output	HDMI: 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768 VGA: 1920x1080, 1280x1024, 1280x720, 1024x768
  	Audio input	Cameras with built-in microphone
  Recording	Live View/Playback	12MP/8MP/5MP/4MP/3MP/1080P/720P
  	Video Format	H.265, H.264
  	Synchronous playback	1-4 channels (supports 1-channel playback if viewing in resolution of 8MP or higher)
  	Recording modes	Person detection, vehicle detection, pet detection, motion-activated detection, 24/7
  Storage	Internal HDD	2 x SATA interface for 2 HDDs (1x 4TB HDD pre-installed)
  	Capacity	Up to 12TB (max 6TB for each HDD)
  	External HD	-
  PoE	Max power per port	25W
  	Standard	IEEE 802.3af/at
  Network	Network Protocol	HTTPS, TCP/IP, UDP, DHCP, P2P, UPNP, RTMP, SMTP, SSL/TLS, DNS, DDNS, NTP
  	Browser	Edge, Firefox, Chrome, Safari
  	OS	PC: Windows, Mac OS; SmartPhone: iOS, Android
  	Max users.	20 users (1 admin and 19 user accounts); supports up to 12 video streams simultaneously (10 sub-streams and 2 mainstreams)
  General	Working environment	Temperature: -10C~+45C, Humidity: 10%~90%
  	Current	DC 48~54V
  	Power Consumption	<10W (without HDD&PoE)
  	Dimension(mm)	330 x 45 x 285mm
  	Weight (without HDD)	1.8kg
  Warranty	Limited Warranty	2-year limited warranty. For support: Reolink Support - Official Reolink Help Center

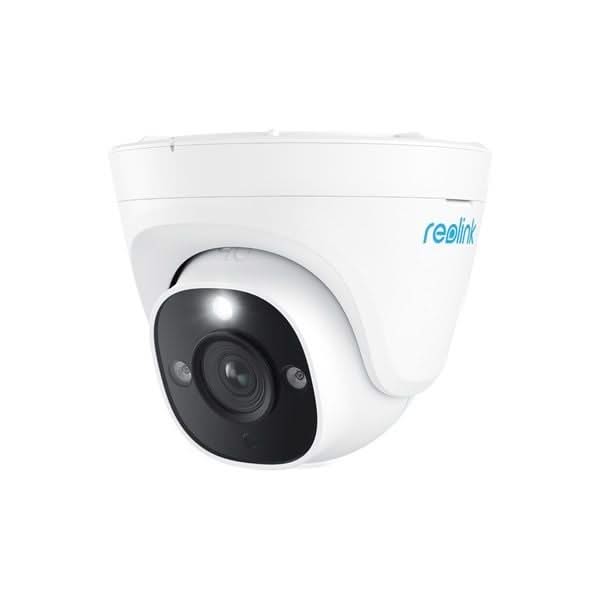

  Camera model: Reolink P334
  Video & Audio	Sensor	1/2.49" CMOS Sensor
  	Resolution	3840 x 2160 (8 Megapixel) @25 frames/sec
  	Lens	f=2.8mm fixed; F=1.6 with IR cut
  	Viewing Angle	Horizontal: 105°, Vertical: 56°
  	Day/night mode	Auto-switching IR cut filter
  	Night vision	30 Meter (LED: 2pcs/1.8W/850nm)
  	Spotlight	1st/4.3W/6500K/700lum
  	Audio	Built-in microphone
  	Video format	H.265
  Power supply	PoE	IEEE 802.3af, 48V
  	Power	DC 12.0V-1A, <12W
  Interface	Ethernet	One 10M/100Mbps RJ45
  	Storage	Micro SD card (up to 256GB)
  	System	Reset button
  	Power	DC power port
  Software	Frame rate	Mainstream: 2fps - 25fps (default: 25fps) Substream: 4fps - 15fps (default: 10fps)
  	Code rate	Main Stream: 2048Kbps -8192Kbps(default: 6144Kbps) Sub Stream: 64Kbps - 512Kbps(default: 256Kbps)
  	Network Protocol	HTTPS, SSL, TCP/IP, UDP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
  	Browser Support	IE, Edge, Chrome, Firefox, Safari
  	OS Support	PC: Windows, Mac OS; Smart Phone: iOS, Android
  	Users	20 users (1 admin account & 19 user accounts); Supports up to 12 video streams simultaneously (10 sub-streams & 2 mainstreams)
  	Recording mode	Motion detection recording (default), scheduled recording
  	Smart Alarm	Motion, person, vehicle and pet detection
  	Works with	Google Assistant, Reolink NVR
  General	Working Environment	Operating temperature -10° ~ 55° C; Operating humidity 10%~90%
  	Waterproof	IP66
  	Dimension	∅117.4x103.8mm
  	Weight	526g
  Warranty	Limited Warranty	2-year limited warranty. See Reolink Support - Official Reolink Help Center
