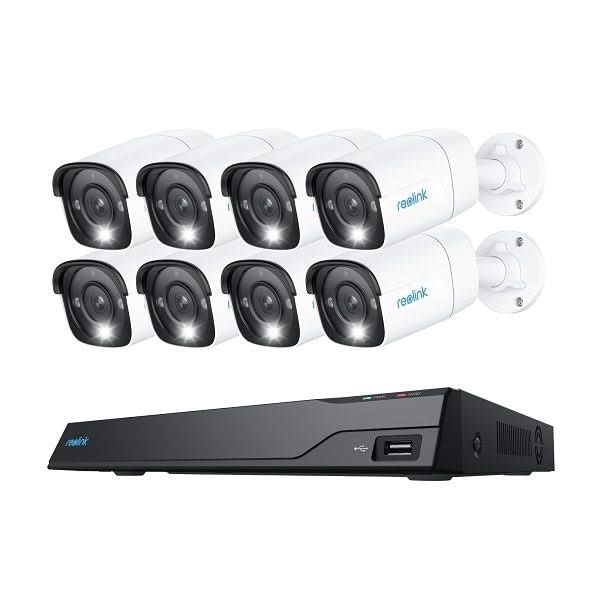

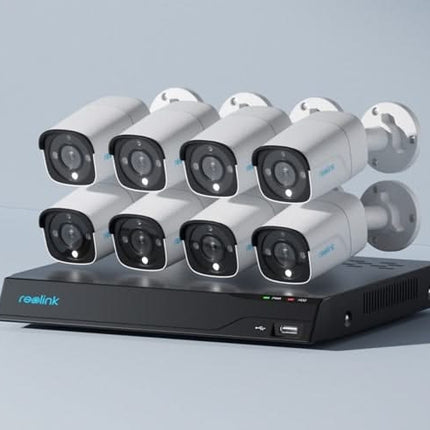

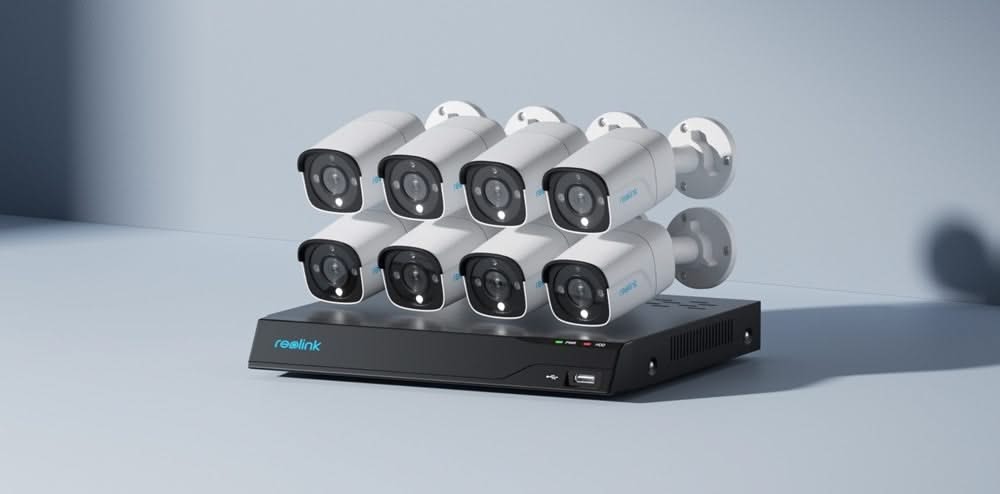

Smart 12MP PoE security system with person, vehicle and animal detection. With the 16-channel NVR and 8 smart PoE outdoor cameras, you have a complete, easy-to-install set that provides excellent security for your home or business!
- Person, vehicle and animal detection
- Power over Ethernet, install cameras quickly and easily

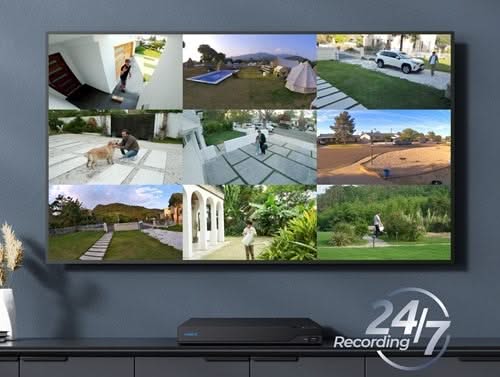

- Non-stop recording with 4TB HDD (pre-installed) and storage capacity of up to 12TB. This PoE set supports all cameras to record continuously simultaneously
- Can be expanded up to 16 cameras with Reolink cameras, bullet, dome or PTZ, 16MP, 12MP, 8MP, 5MP and 4MP

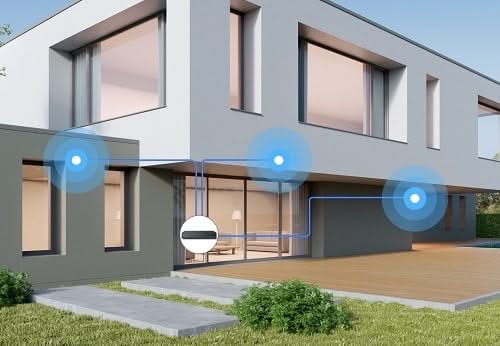

- Easy to install, place your cameras wherever you want
- IP66 weatherproof
- Easy to manage. Access and control your cameras via Reolink app or client
- Cameras (NVC-B12M) will not work without the NVR
Specifications:
| NVS16-12MB8 |
| Model: NVC-B12M (does not work without NVR) |
Video & Audio
| Sensor | 1/2.49" CMOS Sensor |
| Resolutie | 4512 x 2512 (12 Megapixel) @20 frames/sec |
| Lens | f=4.0mm; F=1.6, with IR-cut |
| Kijkhoek | Horizontal: 104°, Vertical: 50.6° |
| IR Night Vision | Up to 30 metres (LED: 2pcs/1.8W/850nm) |
| Day/night mode | Auto switching with IR-cut filter |
| Audio | Built-in mic & speaker |
| Video Format | H.265 |
Stroom
| PoE | IEEE 802.3af, 48V Active |
| DC power | DC 12.0V, 1A, <12W |
Interface
| Power | DC power port |
| Systeem | Reset button present |
| Ethernet | One 10M/100Mbps; RJ45 |
| Ethernetwork | Micro SD card slot (Max 256GB) |
Software features
| Frame rate | 2fps - 20fps |
| Code rate | Mainstream: 3072Kbps - 10240Kbps (default: 8192Kbps)
Substream: 128Kbps - 1228Kbps (default: 1024Kbps) |
| Browser supported | Edge, Chrome, Firefox, Safari |
| OS supported | PC: Windows, Mac OS; Smartphone: iOS, Android |
| Protocols | HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P |
| Max users | 20 users (1 admin & 19 users); up to 12 video streams simultaneously (10 sub streams & 2 main streams) |
| Works with | Google Assistant, Reolink NVR |
| Smart alarm | Motion detection; person detection; vehicle detection; pet detection |
| Recording modes | Movement-activated (default); on schedule |
| Algemeen | Werkomgeving | Operating temperature -10° ~ 55° C;
Operating air humidity 10%~90% |
| Waterproof | IP66 |
| Afmeting | 68x63x188mm |
| Gewicht | 452 gr |
| Garantie | garantie | 2-jaar |
| Model: Reolink NVS16 |
| Video / Audio | IP video input | PoE IP Camera x 16 |
| Video output | HDMI: 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768 |
| VGA: 1920x1080, 1280x1024, 1280x720, 1024x768 |
| Audio input | Cameras with built-in microphone |
Externe interfaces | Video out | VGA, HDMI |
| Ethernet port | 1, RJ-45, 10/100/1000Mbps self-adaptive Ethernet interface for LAN/WAN |
| 16, RJ-45, 10/100Mbps self-adaptive PoE Ethernet interface for IP camera |
| USB port | 2x USB 2.0 |
| Audio port | 1 audio out channel, RCA |
Opnemen
| Video compression | H.264, H.265 |
| Live View/Playback | 12MP/8MP/5MP/4MP/3MP/1080P/720P |
| Synchronous Playback | 1-4 channels (supports 1 channel playback if watching in 8MP or higher) |
| Recording modes | Person/vehicle/pet detection; Motion-triggered detection/ 24/7 recording |
| Opslag | Internal HDD | 2 x SATA interface (1x4TB HDD included) |
| External HDD | No |
| Maximum capacity | 12TB (Max 6TB/ HDD) |
| PoE | Max power consumption per port | 25W |
| Standard supported | IEEE 802.3af/at |
| Netwerk | Network Protocol | HTTPS, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP |
| Browser supported | Edge, Firefox, Chrome, Safari |
| OS supported | PC: Windows, Mac OS; SmartPhone: iOS, Android |
| Max. users | 20 users (1 admin & 19 users); up to 12 video streams simultaneously (10 sub streams & 2 main streams) |
| Algemeen | Werkomgeving | Temperature: -10°~+45°, Humidity: 10%~90% |
| Current | DC 48V~54V |
| Current consumption | <10W (without HDD&PoE) |
| Afmeting(mm) | 330(W) x 45(H) x 285(D) |
| Weight (without HDD) | 1.8 kg |
