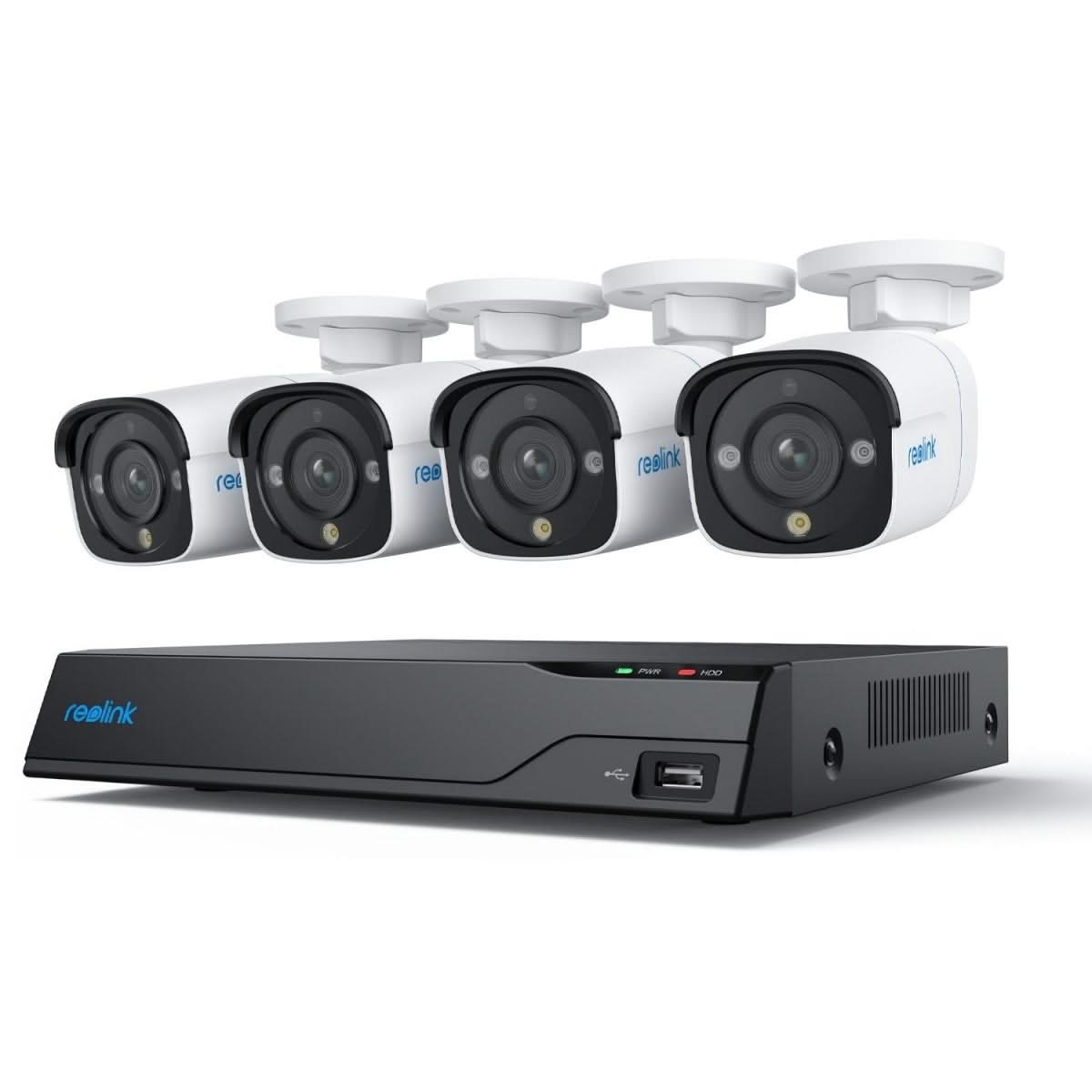

Equipped with advanced smart detection technology, this security system is intelligent enough to distinguish people and cars from other objects. The system offers you true peace of mind, as there are no more false alarms.
4K Ultra HD (8MP, 3840 x 2160) delivers nearly 4 times the clarity of 1080p and exceeds 5MP/4MP Super HD by a wide margin. This superior kit can vividly display the finest important details even when you zoom in digitally, clearing up any ambiguity in video footage previously encountered.
The 18 powerful infrared LEDs in each 4K security camera emit invisible lights that pierce darkness up to 100 feet. In addition, advanced 3D-DNR technology significantly reduces noise levels, ensuring brighter, sharper and smoother nighttime performance.
A true plug and play security system! It features PoE (Power over Ethernet) and needs only one network cable for both power and video signal transmission. Easy wiring - the wiring process could not be easier for do-it-yourselfers and beginners.

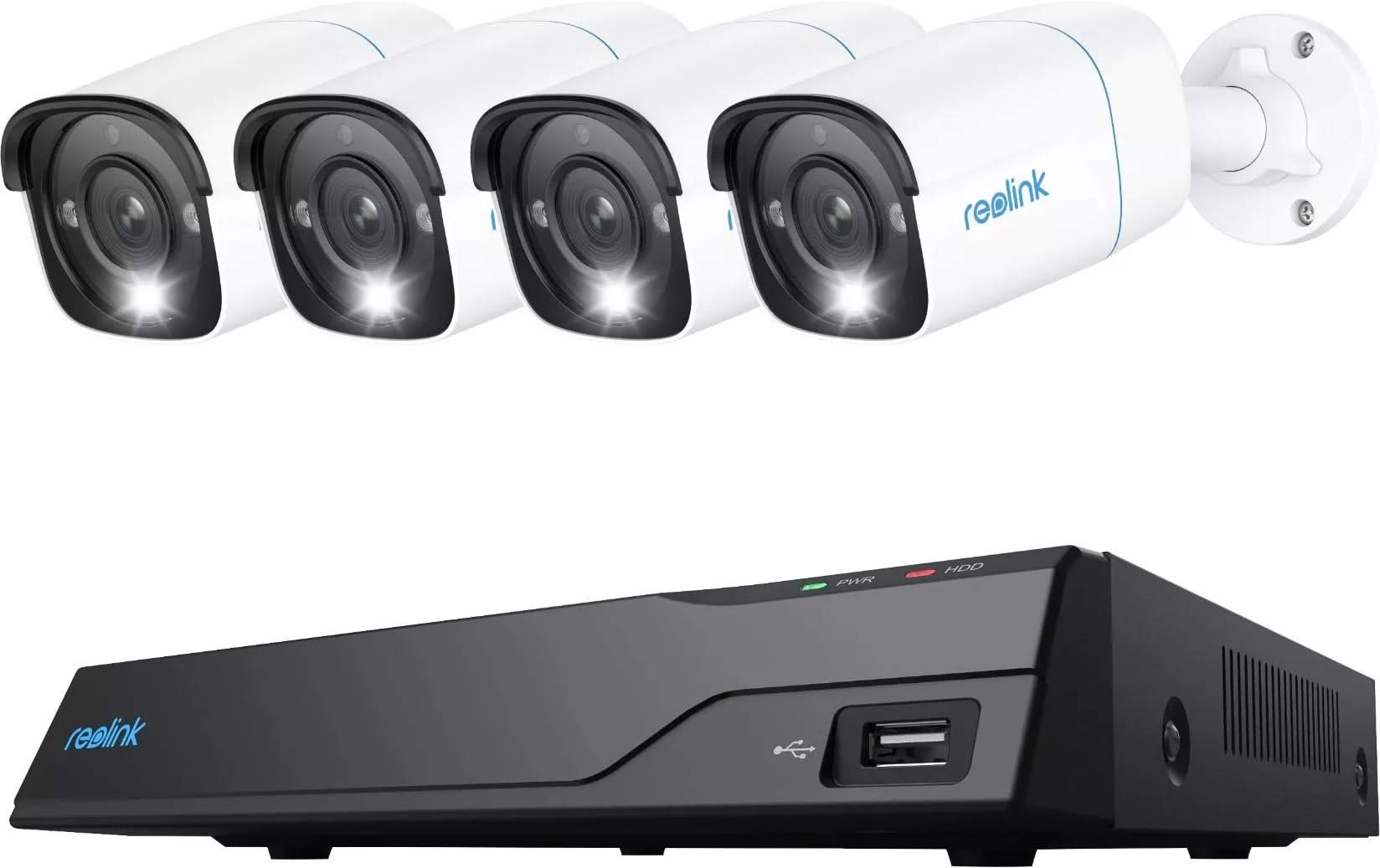

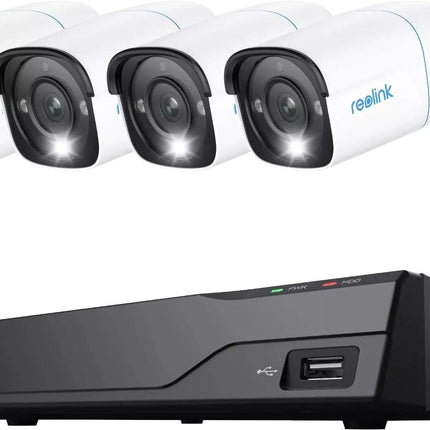

With a pre-installed 2TB HDD and storage capacity of up to 12TB, this 8-channel 4K security camera system supports simultaneous live feed and 24/7 recording of all cameras. You'll have video all day long without missing a beat.
You can place these 4K Ultra HD PoE cameras anywhere, outdoors or indoors! With an IP67 waterproof rating, these cameras will never shy away from the elements, such as black ice, heavy snowfall, extreme cold and heat.
Specifications:
| Model:Reolink NVS8-8MB4 |
| Model | Model NVR | NVS8 |
| Product Name | 8-channel 12MP PoE NVR |

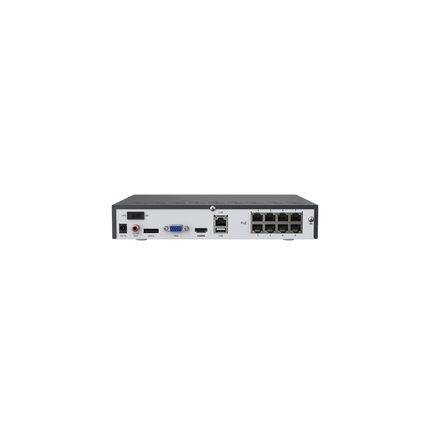

| External Interface | Video out | 1 VGA, 1 HDMI |
| Audio port | 1 audio out channel, RCA |
| USB ports | 2x USB 2.0 |
| Ethernet ports | 1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface for LAN/WAN
8, RJ-45 10/100 Mbps Self-Adaptive PoE Ethernet Interface for IP Cameras |
| Video / Audio output | Video input | PoE IP camera x 8 |
| Video output | HDMI: 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768
VGA: 1920x1080, 1280x1024, 1280x720, 1024x768 |
| Audio input | Cameras with built-in microphone |
Recording
| Live View/Playback | 12MP/8MP/5MP/4MP/3MP/1080P/720P |
| Video Compression | H.265, H.264 |
| Synchronous Playback | 1-4 channels (supports 1-channel playback if viewing in resolution of 8MP or higher) |
| Recording modes | Person detection, vehicle detection, pet detection, motion-activated detection, 24/7 |
| Storage | Internal HDD | 1 SATA interface (1x 2TB HDD pre-installed) |
| Capacity | Up to 12TB (max 6TB for each HDD) |
| External HD | 1 eSATA interface for HDD |
| PoE | Max power per port | 25W |
| Standard | IEEE 802.3af/at |
| Network | Network Protocol | HTTPS, TCP/IP, UDP, DHCP, P2P, UPNP, RTMP, SMTP, SSL/TLS, DNS, DDNS, NTP |
| Browser | Edge, Firefox, Chrome, Safari |
| OS | PC: Windows, Mac OS; SmartPhone: iOS, Android |
| Max users. | 20 users (1 admin and 19 user accounts); supports up to 12 video streams simultaneously (10 sub-streams and 2 mainstreams) |
General
| Working environment | Temperature: -10C~+45C, Humidity: 10%~90% |
| Current | DC 48~53V |
| Power consumption | <10W (without HDD&PoE) |
| Dimension(mm) | 260 x 41 x 230 |
| Weight (without HDD) | 1.4 kg |
| Warranty | 2 years |

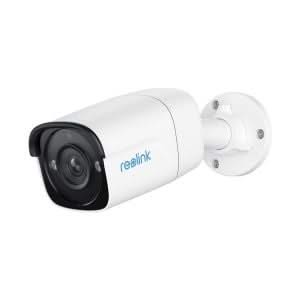

| Camera model: P330 |
Video & Audio
| Sensor | 1/2.49" CMOS Sensor |
| Video Resolution | Standard: 3840 x 2160 (8 Megapixel) @25fps |
| Lens | f=2.8mm fixed; F=2.0 with IR cut |
| Video format | H.265 |
| Viewing angle | Horizontal: 105°, Vertical: 56° |
| Night vision | Up to 30 meters (LED: 2pcs/1.8W/850nm) |
| Spotlight | 1pcs/4.3W/6500K/700lum |
| Day/night mode | IR cut filter with auto switching |
| Audio | Built-in microphone |
Power
| PoE | IEEE 802.3af, 48V Active |
| Power supply | DC12V-1A, <12W |
| Software features | Frame Rate | Main Stream 2fps - 25fps (default 25fps)
Sub Stream 4fps - 15fps (default 10fps) |
| Code rate | Main Stream: 2048Kbps x 8192Kbps (default 6144Kbps)
Sub Stream: 64Kbps x 512Kbps (default 256 Kbps) |
| Browser | Edge, Chrome, Firefox, Safari |
| OS | PC: Windows, Mac OS; Smartphone: iOS, Android |
| Smart alarms | Motion, person, vehicle and pet detection |
| Protocols | HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P |
| Users | 20 users (1 admin and 19 user accounts); supports up to 12 video streams simultaneously (10 substreams and 2 mainstreams) |
| Works with | Google Assistant, Reolink NVR |
| Recording modes | Motion-activated (default), on schedule |
Interface
| System | Reset button |
| Power | DC power port |
| Ethernet | One 10M/100Mbps RJ45 |
| Storage | Micro SD card slot (max 256GB) |
| General | Working Environment | Operating temperature -10° ~ 55° C;
Operating humidity 10%~90% |
| Waterproof | IP66 |
| Dimension | 68x63x188mm |
| Weight | 452g |
