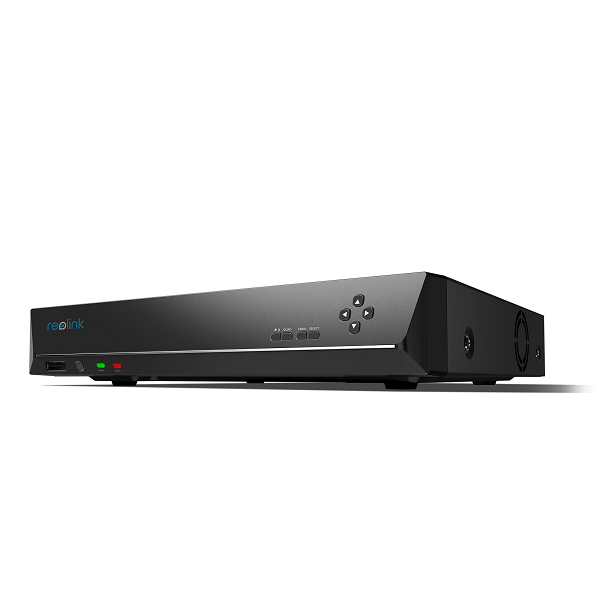

    Reolink NVS36, 36-channel NVR with storage capacity up to 48 TB

    This 36-channel network video recorder can be connected to 36 working cameras, supporting up to 12 MP resolution each. In addition, this NVR has additional "Alarm In" and "Alarm Out" channels to customize various detection modes. The large amount of data can be safely stored on up to 3 HDDs up to 16TB (not included).

    Reolink NVS36, 36-channel NVR with storage capacity up to 48 TB

    • Storage capacity up to 48TB (3x16TB HDD, not included)
    • 8x Alarm In / 4x Alarm Out. Alarm In channels can be used to connect wired sensors (temperature, IR, magnetic sensors etc). Alarm Out channels use for controllers (door, light etc) to perform actions
    • Two-way audio via NVR. Built-in audio ports allow you to make a two-way call through the NVR. You can respond directly to suspicious persons or communicate live with persons on site (works only with Reolink cameras that have a built-in microphone & speaker)
    • Easy to install. This NVR has 1 LAN port to connect to the router and 4 internet ports (non-PoE) to connect to PoE switches or directly to the cameras. You can also connect the cameras to the NVR via WiFi
    • The RLN36 supports all Reolink IP cameras (4MP, 5MP, 8MP and 12MP). Up to 36 cameras can be connected
    • Local access and management: Connect the NVR to a monitor or TV.
      Remote access and management: Use the free Reolink app on a smartphone, Reolink Client on a computer or via web browser

    Technical Specifications:

    Model: Reolink NVS36
    External Interfaces Video out. 1 HDMI, 1 VGA
    Audio ports. 1 audio-in channel, RCA; 1 audio-out channel RCA
    USB ports Front: 1x USB 2.0; Rear: 1x USB 2.0, 1x USB 3.0
    Ethernet ports 4x RJ-45, 10/100/1000 Mbps self-adjust (for IP cameras)
    1x RJ-45, 10/100/1000 Mbps self-adjust (for LAN/WAN)
    No PoE port
    Alarm In: 8 channels; Out: 4 channels
    Video IP camera input Supports up to 36 channels of IP cameras; each channel up to 16MP input
    Video output HDMI: 3840x2160, 1920x1080, 1280x1024, 1280x800, 1280x720
    VGA: 1920x1080, 1280x1024, 1280x720, 1024x768
    Audio Two-way audio Built-in audio in and out ports
    Audio in Via cameras with microphone; via built-in channel (1)
    Audio out Via built-in channel (1)
    Recording Video compression H.265, H.264
    Live View/Playback Resolution 12MP/8MP/5MP/4MP/3MP/1080p/720p
    Recording Modes Personal/vehicle/pet detection, motion-activated recording, 24/7 recording
    Simultaneous Playback 1-4 channels (supports only 1 channel playback when viewing in 8MP or higher resolution)
    Storage Internal HDD 3 SATA ports for 3 HDDs (optional)
    Maximum Capacity 48TB (max 16TB per SATA)
    External HDD No
    Network Network Protocol HTTPS, TCP/IP, UDP, DHCP, P2P, UPNP, RTMP, SMTP, SSL/TLS, DNS, DDNS, NTP
    Browser supported Edge, Firefox, Chrome, Safari
    OS supported PC: Windows, Mac OS; SmartPhone: iOS, Android
    Max. users. 20 users (1 admin and 19 user accounts); up to 12 video streams simultaneously (10 substreams and 2 mainstreams)
    General Working environment Temperature: -10℃~+45℃, Humidity: 10%~90%
    Current DC 12V/5.4A
    Power Consumption <10W (without HDD)
    Dimension(mm) 330 x 48 x 310 mm
    Weight (without HDD) 2.26 kg (without HDD)
