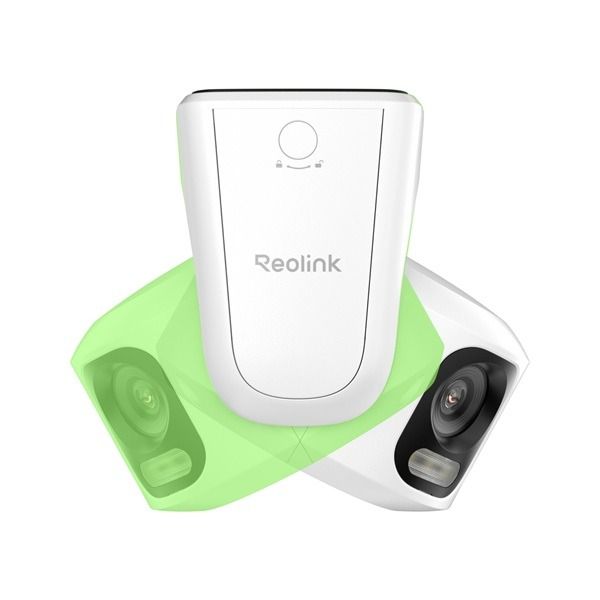

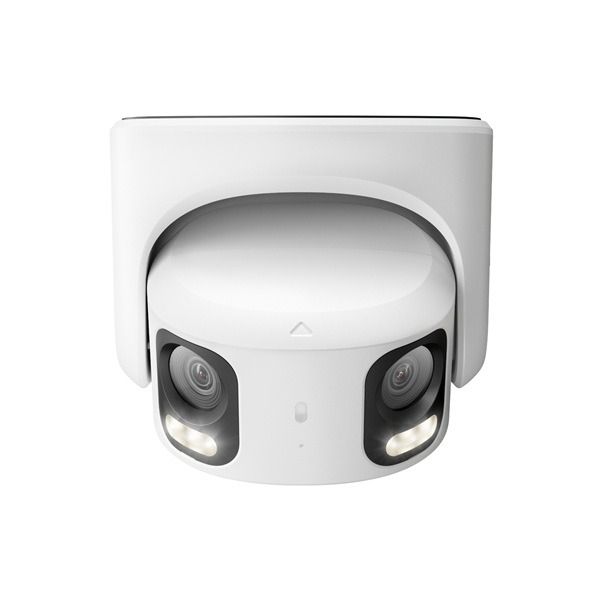

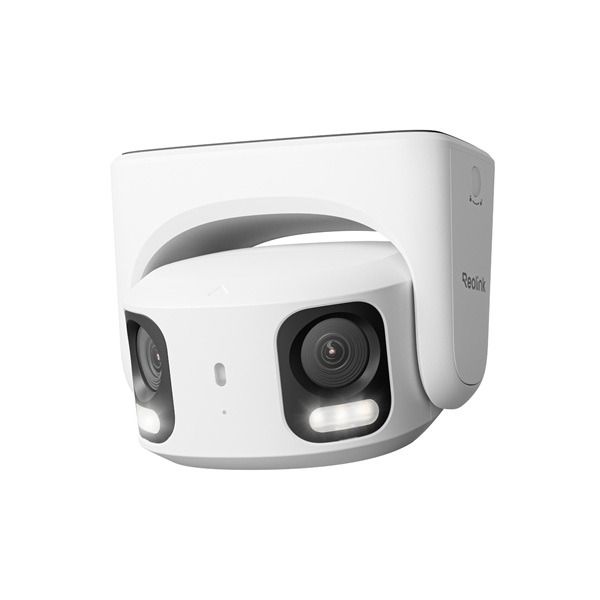

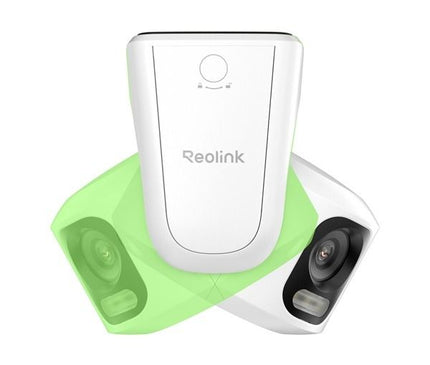

Reolink RP-PCT16MD, 16MP 4K, Dual-Lens Hybrid illumination 180° panoramic view and PoE

16MP UHD Dual-lens PoE outdoor security camera, one camera with many technologies. 16MP UHD clarity, 180° ultra-wide view and Motion Track. Better secure your property with a brighter and wider view. This camera is an excellent, affordable security camera for store, courtyard, garage and/or warehouse.

• 16MP UHD image clarity, with two 4K image sensors;

• Motion Track, visualize the movement path of people, vehicles and animals in one image;

• 180gr panoramic view. Larger field of view through image merging technology, allowing two single lenses to work together;

• Color night vision. Spotlights can not only deter intruders, but also support color night vision. Combined with a large F1.6 aperture, the camera can capture color images with stunning detail even at night;
• AI video search: With well-defined keywords, instantly find specific clips in your local recordings. Filter out unimportant clips and instantly locate the target event!

• Perimeter protection: Receive AI-driven alerts for line crossing, intrusion into a zone or loitering figures in a zone. Accurate protection of critical areas;

• Smart event detection: Receive instant notifications about forgotten or removed objects from key areas. You can take immediate action;
• Secure storage on micro SD card (up to 512GB), on an NVR or FTP;

• Flexible VMS system. Remote live viewing, alarm management, device management, account management, all easy to manage;
• IP67 weatherproof, performs in all weather conditions;

• Durable and sturdy metal housing;
• Flexible installation. Can be ceiling or wall mounted;

• Two-way communication;
• H.265/H.264 video compression;
• Multiple recording options.

Specifications:

Video & Audio

• Sensor: 1/2.8" CMOS Sensor

• Resolution: 7680 × 2160 (16 Megapixel) @ 25 fps

• Lens: f=2.8mm; F=1.6, with IR-cut

• Zoom: N/A

• Viewing angle: Horizontal 180°, Vertical 60°

• Day/night: IR-cut filter with auto-switching

• Infrared night vision: Up to 30 meters (LED: 3× 3W / 850nm)

• Color night vision: 3× 3.5W / 4000K / 400lm

• Frame rate: Mainstream 4-25 fps (standard 25 fps), Substream 4-20 fps (standard 10 fps)

• Code rate: Mainstream 3072-10240 Kbps (default 8192 Kbps), Substream 256-2048 Kbps (default 1024 Kbps)

• Audio: Two-way audio

• Video Compression: H.265 / H.264

Power supply

• PoE: IEEE 802.3af, 48V active

• Current: DC 12.0V - 1A, < 12W

Interface

• Ethernet port: 1× 10M/100Mbps RJ45

Storage

• Micro SD card slot: up to 512GB

• Compatible with: Reolink NVR, FTP

Operation

• Reset button: Yes

• Audio in/out: Built-in microphone and speaker

AI and other features

• Person and object detection: person, vehicle, animal and motion detection

• Smart event detection: object removal (beta), forgotten object (beta)

• Perimeter protection: line crossing, zone intrusion, loitering in zone

• Recording modes: motion-activated (default), scheduled, 24/7 recording

• AI video search: Yes

• Smart Home compatible: Google Assistant

• AI ISP: No

• Motion track: Yes

• Time lapse: Yes

Software

• Network Protocols: HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P, ONVIF

• Browser support: Edge, Chrome, Firefox, Safari

• OS support: PC (Windows, macOS), Smartphone (iOS, Android)

• Users: max. 20 users (1 admin + 19 users)

• Simultaneous streams: max 12 (10 substreams + 2 mainstreams)

General

• Working environment: -30°C to 55°C, 10%-90% humidity

• Waterproof: IP67

• Dimensions: 132 × 131 × 72 mm

• Weight: 775 grams

In the box

• 1× RP-PCB16MD

• 1× Network Cable (1 meter)

• 1× Quick Start Guide
