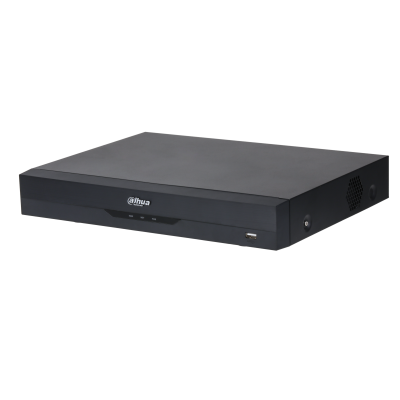

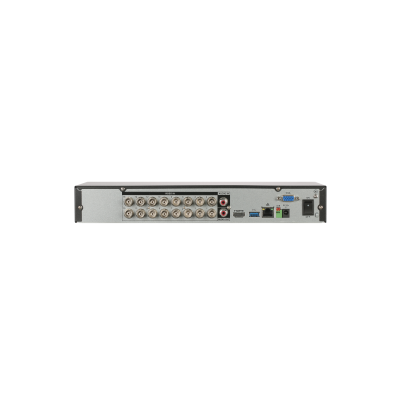

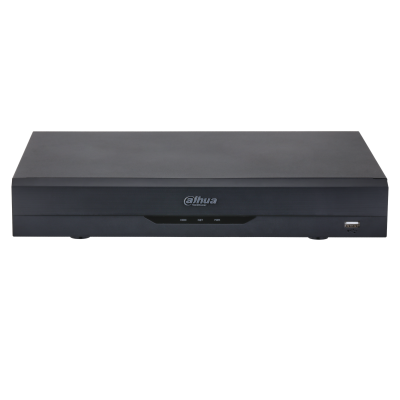

Dahua XVR5116H-4KL-I3, 16-channel HD-CVI/HD-AHD/TVI/Analog DVR 8MP, WizSense (1x SATA)

XVR5116H-4KL-I3, 16-channel DVR WizSense

Penta-brid recorder, meaning that this recorder can handle as many as 5(!) different systems. HD-CVI, HD-AHD, TVI, IP and even traditional analogue cameras can go on this system.

This particular DVR is capable of recording 4K 3840x2160 resolution, or lower) from 16 HD-CVI cameras simultaneously. This recorder is very flexible, IP cameras can also be logged in, up to a maximum of 16. The connections are with BNC and can be connected with coax, of course also with UTP cabling in combination with Baluns. If you also use IP cameras, connect them to your network, preferably wired and possibly via Wifi. It is also possible to connect a second screen to display a single camera.

A super fine recorder that can handle all our surveillance cameras (up to 8MP), regardless of whether they are analogue, HD-CVI (our preference), HD-AHD, TVI or IP. That also makes this recorder perfectly suitable as a replacement for your recorder in existing analogue installation.

Specifications:

• Model Dahua XVR5116H-4KL-I3
• Wizsenze, tripwire, face recognition etc.
• Suitable for HD-CVI, HD-AHD, TVI, Analogue and IP on all channels
• H.265+/H.265 dual-stream video compression
• All channels 4K/7F recording or lower, 4MP/15F or lower 1080p/30F or lower
• Monitor output HDMI and VGA simultaneously
• 16 channels simultaneous playback
• Extra 16x IP camera ondersteuning
• Space for 1 SATA drive up to 16TB
• 3D intelligent positioning with Dahua PTZ dome camera 's
• Various network monitoring possible such as Web viewer, PS software CMS (DSS/Smart PSS) and of course for your mobile phone (DMSS for Iphone and Android)
• Delivered without hard disk (can be ordered separately)
• Audio recording is also possible
• Motion detection on each camera
• Includes mouse and 12V power supply
• Fan on the processor: no
• Cabinet fan: Yes
• Afmeting 325mm×255mm×55mm
