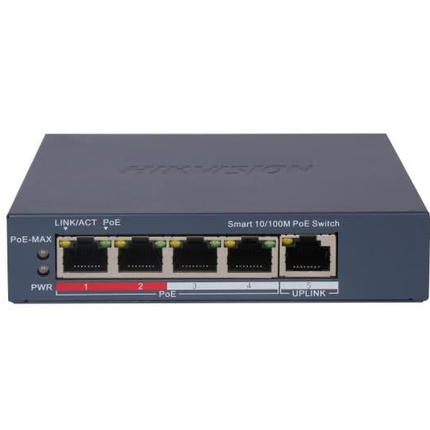

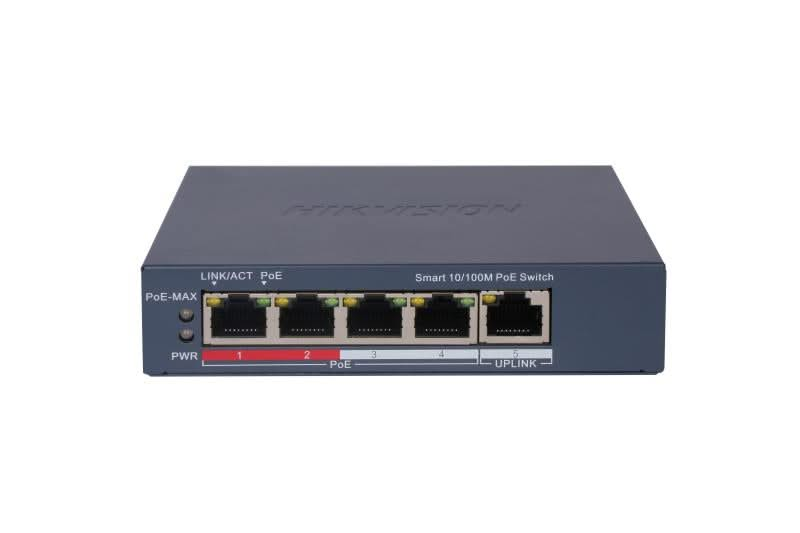

DS-3E1105P-EI, 5 port Smart switch with 4x PoE, 100 Mb

The Hikvision DS-3E1105P-EI is a powerful and reliable 5-port 100Mb PoE switch designed to meet the needs of both small and medium-sized networks. This model offers 4 PoE (Power over Ethernet) ports, which allows network devices such as IP cameras, phones and access points to be powered over the Ethernet cable without the need for a separate power source.

The Hikvision DS-3E1105P-EI is ideally suited for use in security systems, small business environments, home networks and in other locations where PoE devices such as IP cameras, Wi-Fi access points or VoIP phones need to be installed.

With the Hikvision DS-3E1105P-EI, you get a reliable, cost-effective and energy-efficient networking solution, ideal for connecting multiple PoE-enabled devices without the need for additional power sources.

Specifications:

General

• Housing: Metal material
• Net Weight: 0.26 kg (0.573 lb)
• Gross Weight: 0.75 kg (1.65 lb)
• Dimensions (W × H × D): 121.1 mm × 27.6 mm × 83.1 mm (4.77'' × 1.09'' × 3.27'')
• Operating temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Storage temperature: -40 °C to 85 °C (-40 °F to 185 °F)
• Operating humidity: 5% to 95% (without condensation)
• Relative Humidity: 5% to 95% (without condensation)
• Power supply: 54VDC, 1.2A
• Installation mode: Desk mounted, Wall mounted
• Max. Power consumption: 65W
• Idle power consumption: 0.9 W
• Voltage protection: 6 KV

Network parameters

• Ports: 4 × 10/100 Mbps PoE ports, 1 × 10/100 Mbps RJ45 port
• MAC address Table: 2 K
• Switching Capacity: 1 Gbps
• Packet Forwarding Speed: 0.74 Mpps
• Internal Cache: 768 Kbits

PoE Power Supply

• PoE Standard: IEEE 802.3af, IEEE 802.3at
• PoE Power Pin: End-span: 1/2(-), 3/6(+)
• PoE Ports: PoE: Ports 1 to 4
• Max. Port Power: 30 W
• PoE Power Budget: 60 W
