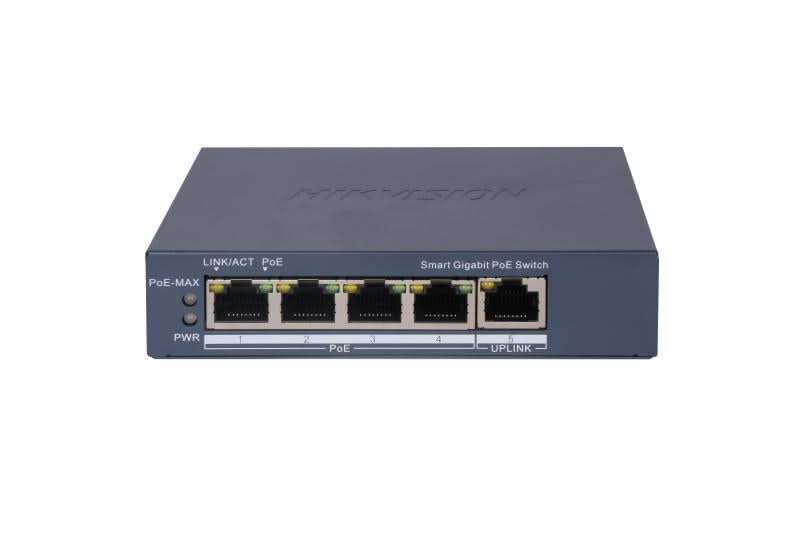

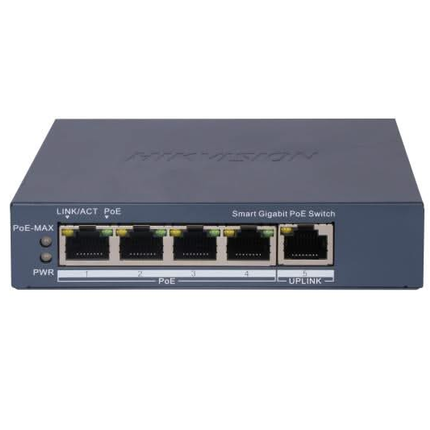

DS-3E1505P-EI, 5 port Smart Switch with 4x PoE, 1000Mb/Gigabit

The Hikvision DS-3E1505P-EI is a smart switch with 4 Gigabit Ethernet ports with PoE+ (802.3at) and 1 Gigabit RJ45 uplink port. You can easily connect your cameras and other network devices to it for a stable network connection and power supply.

• 4 × Gigabit PoE ports, 1 × Gigabit RJ45 port
• Total PoE power budget: 60W
• Supports 802.1Q VLAN
• Supports PoE watchdog to detect and restart unresponsive cameras
• Supports STP/RSTP loop prevention
• Supports cable detection to locate faults
• Up to 300 m long PoE transmission distance
• 6KV surge protection

Specifications:

General

• Housing: Metal material
• Net Weight: 0.26 kg (0.573 lb)
• Gross Weight: 0.75 kg (1.65 lb)
• Dimensions (W × H × D): 121.1 mm × 27.6 mm × 83.1 mm (4.77" × 1.09" × 3.27")
• Working temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Storage temperature: -40 °C to 85 °C (-40 °F to 185 °F)
• Working humidity: 5% to 95% (without condensation)
• Relative Humidity: 5% to 95% (without condensation)
• Power supply: 54VDC, 1.2A
• Installation mode: Desk mounted, Wall mounted
• Max. Power Consumption: 65 W
• Power consumption at rest: 0,9 W
• Voltage protection: 6 KV

Network parameters

• Ports: 4 × Gigabit PoE ports, 1 × Gigabit RJ45 port
• MAC address Table: 2 K
• Switching Capacity: 10 Gbps
• Packet Forwarding Speed: 7.44 Mpps
• Internal Cache: 1 Mbits

PoE Power supply

• PoE Standard: IEEE 802.3af, IEEE 802.3at
• PoE Power Pin: End-span: 1/2(-), 3/6(+)
• PoE PortsPoE: Ports 1 to 4
• Max. Port Power: 30 W
• PoE Power Budget: 60 W
