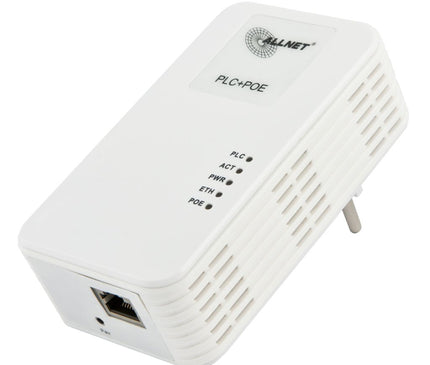

ALLNET Powerline adapter 1200Mbit Bridge RJ45 PoE SmartLink

The ALLNET ALL1681203 SmartLink is a powerful Powerline adapter that enables network connections via the existing electrical wiring.

This model supports PoE and PoE+ up to 30 watts, making it suitable for standard IP cameras as well as lightweight PTZ cameras.

To establish a connection via the electrical wiring, you always need two adapters. You can choose which adapter you want to use as the "Home" adapter near the router. All ALLNET adapters in the "SmartLink" series are compatible with each other. You can add up to 15 "slave" adapters to one "home" adapter.

Thanks to the latest HomePlug AV2 technology and integrated PoE+ functionality, this adapter offers a fast, stable, and flexible network solution for homes, offices, and professional installations. With data speeds of up to 1200 Mbps and support for Gigabit Ethernet, the ALL1681203 is ideal for IP cameras, VoIP phones, access points, and other network devices that require both data and power via a single network cable. Suitable for surveillance cameras, digital displays, network equipment, and IoT applications, ensuring easy integration into existing installations. VoIP phones, access points, and PoE devices Security: 128-bit AES encryption, making it an efficient solution for expanding network connections without installing

new cabling Specifications:

• Product number: ALL1681203
• Technology: HomePlug AV2 SmartLink
• Maximum Powerline Speed: up to 1200 Mbps
• Ethernet port: 1× Gigabit RJ45 (10/100/1000 Mbps)
• PoE support: IEEE 802.3at (PoE+)
• Maximum PoE power: 30 watts
• Chipset: Qualcomm QCA7500 + QCA8334
• MIMO support: Yes
• Frequency range: 2 – 68 MHz
• Modulation technology: OFDM, BPSK, QPSK, 8/16/64/256/1024/4096-QAM
• Security: 128-bit AES encryption
• Quality of Service (QoS): Yes
• IGMP support: Yes
• Maximum number of adapters: 15
• Compatibility: IEEE 1901, IEEE 1905.1, HomePlug AV, and HomePlug AV2
• Input voltage: 85–265 V AC
• PoE output: 48 V DC, max. 30 W
• Maximum PoE cable length: 100 meters (Cat5e/Cat6)
• LED indicators: Power, Powerline Link/Activity, Ethernet Link/Activity
• Operating temperature: 0°C to 40°C
• Storage temperature: -25°C to 70°C
• Dimensions: 115 × 65 × 30 mm
• Weight: approximately 300 grams
• Certifications: CE, RoHS
